Belden 9259 0101000 75 Ohm Analog Video Coax, RG-59, 22 AWG Str BC, 95% BC Braid, PVC Jkt, CM
75 Ohm Analog Video Coax, RG-59, 22 AWG (7x30) Bare Copper Conductor , PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM
Ordering Details
- Manufacturer Part Number: 9259 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825352969
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

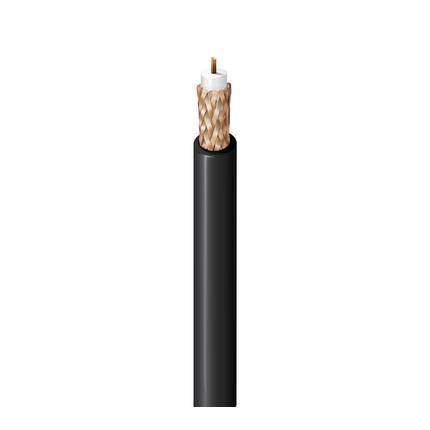

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Standard analog video
Construction Details
- RG Type: 59
- Size: 22 AWG; Stranding: 7x30; Nom. Diameter: 0.029 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.146 in (3.71 mm); Color Code: White
- Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.240 in (6.10 mm)
- Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.3 dB/100ft
- Frequency: 5 MHz; Nom. Attenuation: 0.65 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.9 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.1 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 3 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 4.5 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 6.6 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 8.9 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 10.1 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 10.9 dB/100ft
- Nom. Conductor DCR: 15 Ohm/1000ft; Nom. Outer Shield DCR: 2.6 Ohm/1000ft (8.5 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.3 pF/ft (56.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)
Mechanical Characteristics
- Operating: -40°C to +80°C
- Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 65 lbs (29 kg)
- Bulk Cable Weight: 33 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1685 UL Loading
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: CM
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 89259
History
- Update and Revision: Revision Number: 0.493 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
