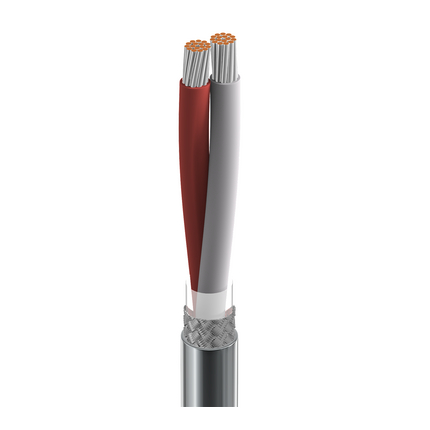

Belden 8208 0605000 Electronic, 2 C #18 Str TC, EPDM Ins, OA TC Brd, PVC Jkt - Chrome, 5,000 ft Reel

$32,029.99
SKU:
8208 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8208
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8208 0605000 Electronic, 2 C #18 Str TC, EPDM Ins, OA TC Brd, PVC Jkt

Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, EPDM Insulation, Overall Tinned Copper Braid(73%) Shield, PVC Outer Jacket

Ordering Details

  • Manufacturer Part Number: 8208 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825196082
  • Manufacturer Footnote: C Z

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.091 in (2.3 mm); Color Code: Red, White
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 73%
  • Separator: Polyester Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.257 in (6.53 mm)
  • Overall Cable Diameter (Nominal): 0.257 in (6.53 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 46 pF/ft (150 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 77 pF/ft (250 pF/m); Nom. Characteristic Impedence: 44 Ohm; Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 5.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.09 Ohm/1000ft (6.86 Ohm/km)
  • Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +80°C
  • Stationary Min.: 2.57 in (65.3 mm); Installation Min.: 2.57 in (65.3 mm)
  • Max. Pull Tension: 41.6 lbs (18.9 kg)
  • Bulk Cable Weight: 40 lbs/1000ft

Standards and Compliance

  • Sustainability: CA Prop 65
  • CPR Compliance: CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: No surface printing.

History

  • Update and Revision: Revision Number: 0.526 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
