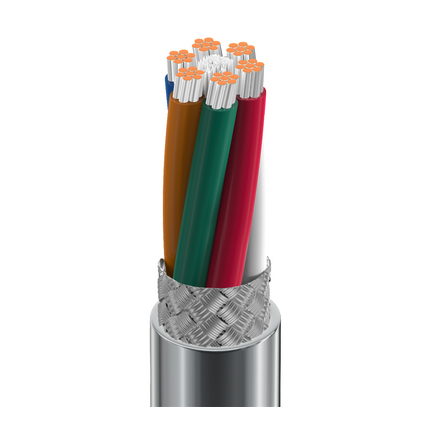

Belden 9260 0605000 Electronic, 6 C #20 Str TC, PVC Ins, OA TC Brd, PVC Jkt, CMG - Chrome, 5,000 ft Reel

$53,650.99
SKU:
9260 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9260
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9260 0605000 Electronic, 6 C #20 Str TC, PVC Ins, OA TC Brd, PVC Jkt, CMG

Electronic, 6 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 9260 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825225942
  • Manufacturer Footnote: C Z

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 6; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.070 in (1.8 mm); Color Code: Black, White, Red, Green, Orange, Blue
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.305 in (7.75 mm)
  • Overall Cable Diameter (Nominal): 0.305 in (7.75 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 9.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 50 pF/ft (160 pF/m); Max. Current: 3.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.8 Ohm/1000ft (9.2 Ohm/km)
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 3.1 in (79 mm); Installation Min.: 3.1 in (79 mm)
  • Max. Pull Tension: 131 lbs (59.4 kg)
  • Bulk Cable Weight: 64 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.519 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Resources

Belden 9260 Product Information
