Description
Belden 8024 000100 Bus Bar Wire, #28 Sol TC
Bus Bar Wire, 28AWG (Solid) Tinned Copper, QQ-W-343G
Ordering Details
- Manufacturer Part Number: 8024 000100
- Color: None
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825194408
Supplied as one 100 ft Reel.

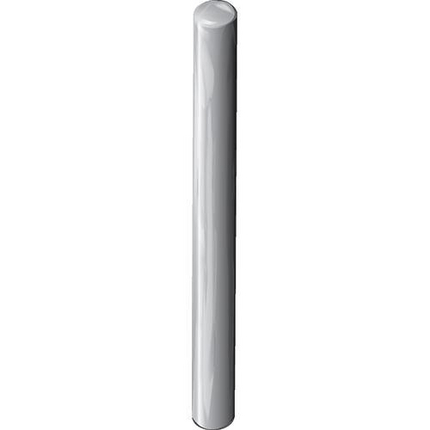

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: bus bar
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 28; Stranding: Solid; Material: TC - Tinned Copper
- Overall Cable Diameter (Nominal): 0.13 in (3.3 mm)
Electrical Characteristics
- Nom. Conductor DCR: 66.7 Ohm/1000ft
Mechanical Characteristics
- Stationary Min.: 0.52 in (13 mm); Installation Min.: 0.52 in (13 mm)
- Max. Pull Tension: 2 lbs (0.91 kg)
- Bulk Cable Weight: 1 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.446 Revision Date: 02-20-2026
