Description
Belden 8022 000100 Bus Bar Wire, #24 Sol TC
Bus Bar Wire, 24AWG (Solid) Tinned Copper, QQ-W-343G
Ordering Details
- Manufacturer Part Number: 8022 000100
- Color: None
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825194361
Supplied as one 100 ft Reel.

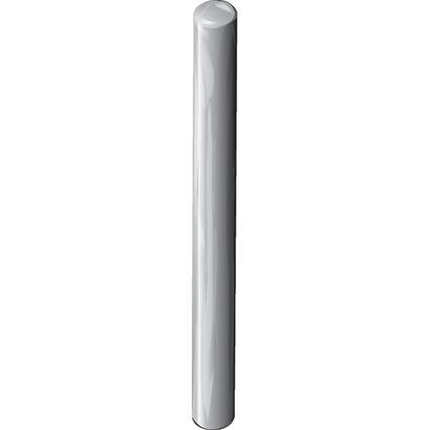

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: bus bar
Construction Details
- Size: 24; Stranding: Solid; Material: TC - Tinned Copper
- Overall Cable Diameter (Nominal): 0.020 in (0.51 mm)
Electrical Characteristics
- Nom. Conductor DCR: 25.4 Ohm/1000ft (83.3 Ohm/km)
Mechanical Characteristics
- Bulk Cable Weight: 1 lbs/1000ft (1.5 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.352 Revision Date: 10-27-2026
