Description
Belden 7818A 0101000 Harsh Environment SMPTE 311M Cable, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG, Polyurethane Jacket
Harsh Environment SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PE Insulation, TC Braid Shield (95% coverage), Polyurethane Jacket
Ordering Details
- Manufacturer Part Number: 7818A 0101000
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825352259
Supplied as one 1,000 ft Reel.

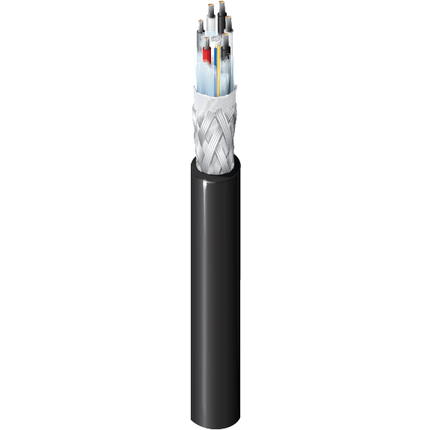

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Overview
- Product Category: SMPTE Cable
- Suitable Applications: SMPTE 311M CAMERA CABLE
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 2024-01-09
Fiber Specifications
- Fiber Type: OS2, G.657.A2
- Fiber Buffer Material: PVC - Polyvinyl Chloride
- Fiber Buffer Diameter: 900 µm
- Fiber Count: 2
- Fiber Color Code: Yellow, Blue
Conductor Specifications
- Conductor Size: 24 AWG, 20 AWG
- Insulation Material: Polyolefin (PO, PE, PP)
Outer Jacket Specifications
- Jacket Material: PUR - Polyurethane
- Nom. Diameter: 0.357 in (9.07 mm)
- Wavelength: Max. Attenuation; 1310 nm: 0.50 dB/km; 1550 nm: 0.50 dB/km
Mechanical Characteristics
- Bulk Cable Weight: 69 lbs/1000ft (100 kg/km)
Temperature Range
- Operating Temperature Range: -40C To +75C
- Installation Temperature Range: -10°C To +70°C
- Storage Temperature Range: -40°C To +75°C
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor
- CPR Euroclass: Fca
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.250 Revision Date: 07-30-2026
