Belden 7817A 0101000 SMPTE 311M Double Jacket, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG - 1,000 ft Reel

$3,064.99
SKU:
7817A 0101000
Shipping:
Calculated at Checkout
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7817A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7817A 0101000 SMPTE 311M Double Jacket, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG

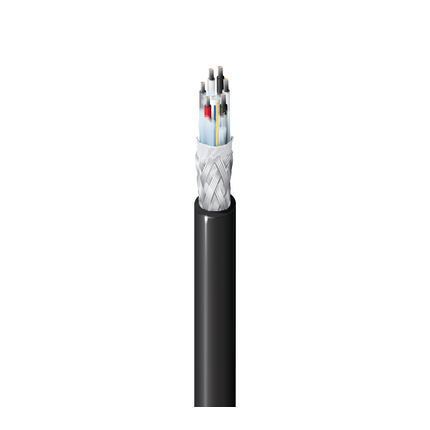

12mm Double Jacketed SMPTE 311M Studio Cable, 4 power conductors, SM fibers w/24 and 20 AWG stranded (7x32 and 19x32) TC conductors, PE insulation, TC braid shield (85% coverage), Belflex® jacket.

Ordering Details

  • Manufacturer Part Number: 7817A 0101000
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825189909

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: SMPTE 311M Camera Cable

Fiber Specifications

  • Fiber Type: OS2, G.657.A2
  • Fiber Core Diameter: 9.5/125 microns
  • Fiber Buffer Material: PVC - Polyvinyl Chloride
  • Fiber Buffer Diameter: 900 µm
  • Fiber Count: 2
  • Fiber Color Code: Yellow, Blue

Conductor Specifications

  • Conductor Size: 24 AWG, 20 AWG

Inner Jacket Specifications

  • Material: PVC - Polyvinyl Chloride

Outer Jacket Specifications

  • Jacket Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.472 in (12.0 mm)
  • Wavelength: Max. Attenuation; 1310 nm: 0.50 dB/km; 1550 nm: 0.50 dB/km

Mechanical Characteristics

  • Bulk Cable Weight: 108 lbs/1000ft (161 kg/km)

Temperature Range

  • Operating Temperature Range: -40°C to 70°C
  • Installation Temperature Range: -10°C to 70°C
  • Storage Temperature Range: -40°C to 70°C

Standards and Compliance

  • Environmental Suitability: Outdoor
  • Flammability / Reaction to Fire: VW-1
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Bend Radius is based upon (FOTP-37) @ 20°C. Plenum version and other conductor counts/diameters available by special order.

History

  • Update and Revision: Revision Number: 0.153 Revision Date: 09-25-2025

Resources

Belden 7817A Product Information
