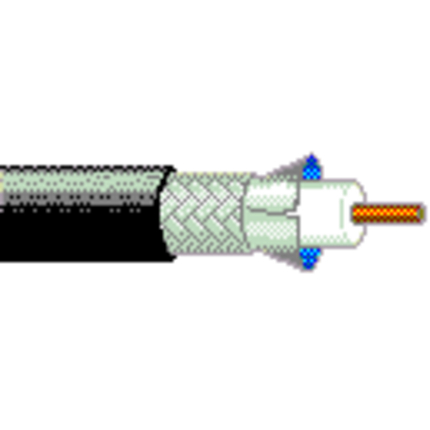

Belden 7809R 0101000 50 Ohm Wireless Transmission Coax, RF 300, 13 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR - Black, 1,000 ft Reel

$3,212.99
SKU:
7809R 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7809R
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7809R 0101000 50 Ohm Wireless Transmission Coax, RF 300, 13 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR

50 Ohm Wireless Transmission Coax, RF 300, 13 AWG Solid Bare Copper Conductor, PE Insulation, Duobond® Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Ordering Details

  • Manufacturer Part Number: 7809R 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825189756
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

  • Element: Coax(es); No. of Elements: 1; Size: 13 AWG; Stranding: Solid; Nom. Diameter: 0.072 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.19 in (4.8 mm); Color Code: White
  • Insulation Table Notes: Gas Injected
  • Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
  • Outer Shield Table Notes: Splicing Tape
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.3 in (7.6 mm)
  • Overall Cable Diameter (Nominal): 0.3 in (7.6 mm)

Electrical Characteristics

  • Frequency: 5-6000 MHz; Max. VSWR: 1.25:1
  • Frequency: 5 MHz; Nom. Attenuation: 0.45 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.6 dB/100ft
  • Frequency: 30 MHz; Nom. Attenuation: 1 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 1.3 dB/100ft
  • Frequency: 150 MHz; Nom. Attenuation: 2.2 dB/100ft
  • Frequency: 220 MHz; Nom. Attenuation: 2.7 dB/100ft
  • Frequency: 450 MHz; Nom. Attenuation: 3.9 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 5.6 dB/100ft
  • Frequency: 1500 MHz; Nom. Attenuation: 7.3 dB/100ft
  • Frequency: 1800 MHz; Nom. Attenuation: 8.1 dB/100ft
  • Frequency: 2000 MHz; Nom. Attenuation: 8.6 dB/100ft
  • Frequency: 2500 MHz; Nom. Attenuation: 9.7 dB/100ft
  • Frequency: 3000 MHz; Nom. Attenuation: 10.8 dB/100ft
  • Frequency: 3500 MHz; Nom. Attenuation: 11.8 dB/100ft
  • Frequency: 4500 MHz; Nom. Attenuation: 13.5 dB/100ft
  • Frequency: 5800 MHz; Nom. Attenuation: 15.8 dB/100ft
  • Frequency: 6000 MHz; Nom. Attenuation: 16 dB/100ft
  • Frequency: 30 MHz; Max. Power Rating: 2,161 W
  • Frequency: 50 MHz; Max. Power Rating: 1,658 W
  • Frequency: 150 MHz; Max. Power Rating: 928 W
  • Frequency: 220 MHz; Max. Power Rating: 758 W
  • Frequency: 450 MHz; Max. Power Rating: 522 W
  • Frequency: 900 MHz; Max. Power Rating: 367 W
  • Frequency: 1,500 MHz; Max. Power Rating: 278 W
  • Frequency: 2,000 MHz; Max. Power Rating: 239 W
  • Frequency: 2,500 MHz; Max. Power Rating: 212 W
  • Frequency: 3,500 MHz; Max. Power Rating: 179 W
  • Frequency: 4,500 MHz; Max. Power Rating: 157 W
  • Frequency: 6,000 MHz; Max. Power Rating: 135 W
  • Frequency: 4,500 MHz; Max. Power Rating: 157 W
  • Frequency: 5,800 MHz; Max. Power Rating: 137 W
  • Frequency: 6,000 MHz; Max. Power Rating: 135 W
  • Nom. Conductor DCR: 2.16 Ohm/1000ft (7.09 Ohm/km); Nom. Outer Shield DCR: 3.1 Ohm/1000ft (10 Ohm/km); Nom. Capacitance Cond-to-Shield: 23 pF/ft (75 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 86%
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -40°C To +75°C
  • Stationary Min.: 3 in (76 mm); Installation Min.: 3 in (76 mm)
  • Max. Pull Tension: 135 lbs (61.2 kg)
  • Bulk Cable Weight: 61 lbs/1000ft (91 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.611 Revision Date: 04-02-2026
  • Footnote: C - CRATE REEL PUT-UP.
