Description
Belden 7733A 010500 50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVDF Jkt, CMP, Low Loss
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor , FEP Insulation, Foil + 90% Tinned Copper Braid Shield, PVDF Jacket, CMP, Low Loss
Ordering Details
- Manufacturer Part Number: 7733A 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825357971
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

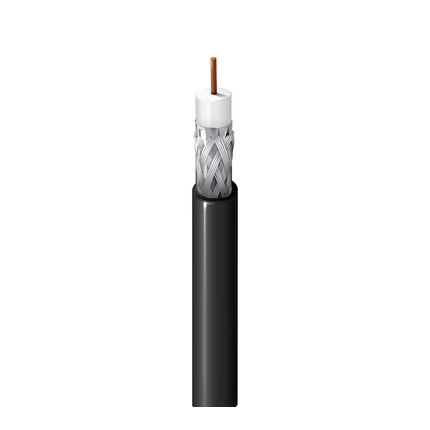

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Construction Details
- RG Type: 8
- Size: 10 AWG; Stranding: Solid; Nom. Diameter: 0.108 in; Material: BC - Bare Copper
- Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Insulation Diameter: 0.280 in (7.11 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVDF - Polyvinylidene Fluoride; Nom. Diameter: 0.355 in (9.02 mm)
- Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.1 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 1.1 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.5 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 2.1 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 3.2 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 4.5 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 5.7 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 5.9 dB/100ft
- Frequency: 4000 MHz; Nom. Attenuation: 14.1 dB/100ft
- Nom. Conductor DCR: 0.9 Ohm/1000ft; Nom. Outer Shield DCR: 1.8 Ohm/1000ft (5.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 24.2 pF/ft (79.4 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 84%
- UL Voltage Rating: 300 V (CMP, CL2P)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -20°C to +150°C
- Installation Min.: 3.6 in (91 mm)
- Max. Pull Tension: 174 lbs (78.9 kg)
- Bulk Cable Weight: 115 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- NEC / UL Compliance: CL2P, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.463 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
