Belden 9914 010500 50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMG
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor , PE Insulation, Duobond® Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9914 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825268901
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

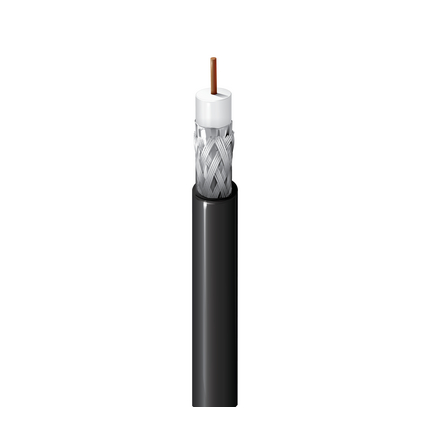

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Construction Details
- RG Type: 8
- Size: 10 AWG; Stranding: Solid; Nom. Diameter: 0.103 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.285 in (7.24 mm); Color Code: White; Notes: Gas Injected Foam
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.403 in (10.2 mm)
- Overall Cable Diameter (Nominal): 0.403 in (10.2 mm)
Electrical Characteristics
- Frequency: 5-2250 MHz; Max. VSWR: 1.43:1
- Frequency: 5 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.5 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 1.0 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.4 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 1.8 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 2.6 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 3.6 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 4.1 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 4.4 dB/100ft
- Frequency: 1500 MHz; Nom. Attenuation: 5.5 dB/100ft
- Frequency: 1800 MHz; Nom. Attenuation: 6.1 dB/100ft
- Frequency: 2000 MHz; Nom. Attenuation: 6.5 dB/100ft
- Frequency: 2500 MHz; Nom. Attenuation: 7.5 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 8.3 dB/100ft
- Frequency: 4000 MHz; Nom. Attenuation: 9.9 dB/100ft
- Frequency: 5 MHz; Max. Power Rating: 4,021 W
- Frequency: 10 MHz; Max. Power Rating: 3,217 W
- Frequency: 50 MHz; Max. Power Rating: 1,609 W
- Frequency: 100 MHz; Max. Power Rating: 1,149 W
- Frequency: 200 MHz; Max. Power Rating: 894 W
- Frequency: 400 MHz; Max. Power Rating: 619 W
- Frequency: 700 MHz; Max. Power Rating: 447 W
- Frequency: 1,000 MHz; Max. Power Rating: 366 W
- Frequency: 1,500 MHz; Max. Power Rating: 293 W
- Frequency: 2,000 MHz; Max. Power Rating: 248 W
- Frequency: 2,500 MHz; Max. Power Rating: 215 W
- Frequency: 3,000 MHz; Max. Power Rating: 194 W
- Frequency: 4,000 MHz; Max. Power Rating: 163 W
- Nom. Conductor DCR: 1.0 Ohm/1000ft; Nom. Outer Shield DCR: 1.3 Ohm/1000ft (4.3 Ohm/km); Nom. Capacitance Cond-to-Shield: 24.8 pF/ft (81.4 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 82%
- UL Voltage Rating: 300 V (CMG), 30 V (UL AWM 1354); Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C to +80°C
- Installation Min.: 4.0 in (100 mm)
- Max. Pull Tension: 247 lbs (112 kg)
- Bulk Cable Weight: 105 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1685 FT4 Loading
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMG
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.536 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
