Belden 7700A B59500 75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG Str TC, 95% TC French Braids, Flamarrest® Jkt, CMP, Flexible
75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors , FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest® Jacket, CMP, Flexible
Ordering Details
- Manufacturer Part Number: 7700A B59500
- Color: Black, Matte
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825415879
Supplied as one 500 ft Reel.

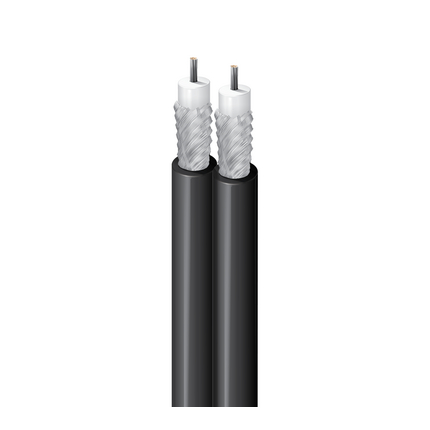

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: S-Video, Standard analog video
Construction Details
- RG Type: Ultra-miniature 59
- Size: 30 AWG; Stranding: 7x38; Nom. Diameter: 0.012 in; Material: TC - Tinned Copper
- Material: PFA - Perfluoroalkoxy (Foam); Nom. Insulation Diameter: 0.053 in (1.3 mm); Color Code: White
- Shield Type: French Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.107 x .215 in
- Overall Cable Diameter (Nominal): 0.107 in (2.72 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.7 dB/100ft
- Frequency: 5 MHz; Nom. Attenuation: 1.7 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 2.3 dB/100ft
- Frequency: 30 MHz; Nom. Attenuation: 4.1 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 5.3 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 7.6 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 11.8 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 17.6 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 24.2 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 28.0 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 29.8 dB/100ft
- Nom. Conductor DCR: 92.6 Ohm/1000ft; Nom. Inner Shield DCR: 7.5 Ohm/1000ft (25 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.3 pF/ft (56.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CMP); Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Installation Min.: 2.2 in (56 mm)
- Max. Pull Tension: 12 lbs (5.4 kg)
- Bulk Cable Weight: 20 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 1807A
History
- Update and Revision: Revision Number: 0.440 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
