Description
Belden 76514TS 008500 MachFlex™, 14 Pr #26 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG
MachFlex™ for High Flex, 14 Pair 26AWG (7x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 76514TS 008500
- Color: Gray
- Put-Up: Reel
- UPC/EAN: 612825411512

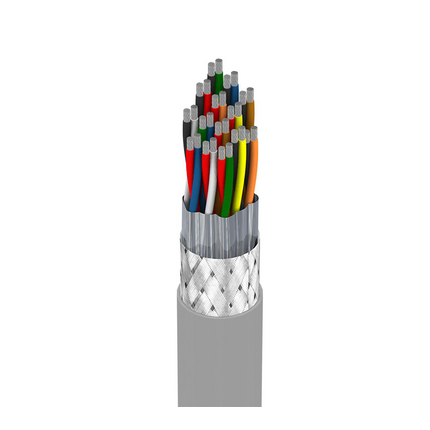

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Pair(s); No. of Elements: 14; Size: 26 AWG; Stranding: 7x34; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.039 in (0.99 mm); Color Code: Black & Red, Black & white, Black & Green, Black & Blue, Black & Brown, Black & Yellow, Black & Orange, Red & Green, Red & White, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 26 AWG (7x34) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.426 in
- Overall Cable Diameter (Nominal): 0.426 in
Electrical Characteristics
- Nom. Conductor DCR: 42 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 21.4 pF/ft (70.2 pF/m); Nom. Characteristic Impedence: 89 Ohm; Nom. Inductance: .20 µH/ft (0.66 µH/m)
- Nom Outer Shield DCR: 2.0 Ohm/1000ft (6.6 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -10°C To 105°C (Static), 5°C To 105°C (Flexing)
- Stationary Min.: 4.26 in (108 mm); Installation Min.: 6.4 in; Flexing Min.: 6.4 in (160 mm)
- Max. Pull Tension: 72 lbs (33 kg)
- Bulk Cable Weight: 102 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Sunlight Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading, FT4
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2661, AWM 10002, AWM I/II A/B
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.138 Revision Date: 10-08-2026
