Belden 76503TS 008500 MachFlex™, 3 Pr #26 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG - Gray, Reel

$1,463.99
SKU:
76503TS 008500
Shipping:
Calculated at Checkout
Color:
Gray
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
76503TS
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 76503TS 008500 MachFlex™, 3 Pr #26 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG

MachFlex™ for High Flex, 3 Pair 26AWG (7x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 76503TS 008500
  • Color: Gray
  • Put-Up: Reel
  • UPC/EAN: 612825411376

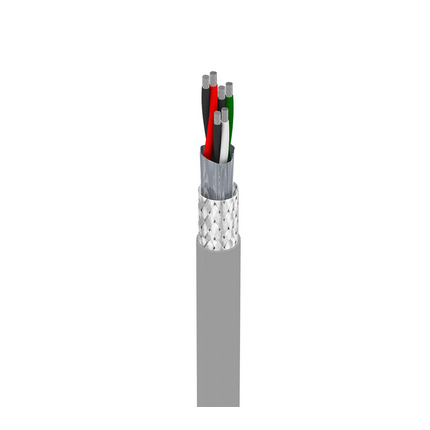

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Element: Pair(s); No. of Elements: 3; Size: 26 AWG; Stranding: 7x34; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.039 in (0.99 mm); Color Code: Black & Red, Black & white, Black & Green
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 26 AWG (7x34) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.254 in
  • Overall Cable Diameter (Nominal): 0.254 in

Electrical Characteristics

  • Nom. Conductor DCR: 42 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Characteristic Impedence: 83 Ohm; Nom. Inductance: .20 µH/ft (0.66 µH/m)
  • Nom Outer Shield DCR: 3.6 Ohm/1000ft (12 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -10°C To 105°C (Static), 5°C To 105°C (Flexing)
  • Stationary Min.: 2.54 in (64.5 mm); Installation Min.: 3.8 in; Flexing Min.: 3.8 in (97 mm)
  • Max. Pull Tension: 19.9 lbs (9.03 kg)
  • Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading, FT4
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2661, AWM 10002, AWM I/II A/B
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.141 Revision Date: 10-08-2026
