Description
Belden 7450WS 0601000 MachFlex™, 3+1 C #8 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlex™ for High Flex, 3+1 Conductor 8AWG (168(7x24)x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
Ordering Details
- Manufacturer Part Number: 7450WS 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825186984
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

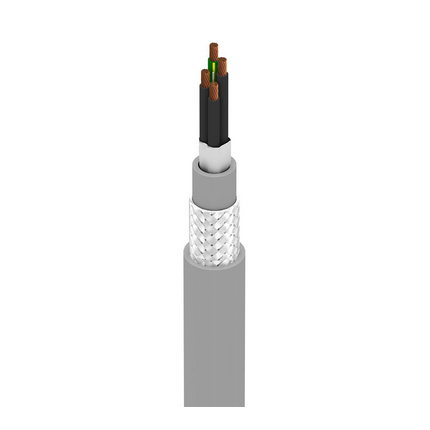

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 8 AWG; Stranding: 168x30; Material: BC - Bare Copper
- Element: Ground Wire; No. of Elements: 1; Size: 8 AWG; Stranding: 168x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.037 in (0.94 mm); Nom. Insulation Diameter: 0.247 in (6.27 mm); Color Code: Black and Numbered
- Element: Ground Wire; Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.037 in (0.94 mm); Nom. Insulation Diameter: 0.247 in (6.27 mm); Color Code: Green/Yellow
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: non-Woven Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.712 in (18.1 mm); Color: Chrome
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.085 in (2.2 mm); Nom. Diameter: 0.87 in (22 mm)
- Overall Cable Diameter (Nominal): 0.876 in (22.3 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 1 Ohm/1000ft (3.3 Ohm/km); Max. Current: 55 Amps per Conductor at 30ºC
- Element: Ground Wire; Nom. Conductor DCR: 1.08 Ohm/1000ft (3.54 Ohm/km)
- Nom Outer Shield DCR: 2.04 Ohm/1000ft (6.69 Ohm/km)
- UL Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)
Mechanical Characteristics
- UL Temperature: UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C; Operating: -40°C To +105°C
- Stationary Min.: 6 in (150 mm); Installation Min.: 9 in (230 mm); Flexing Min.: 11 in
- Max. Pull Tension: 1017 lbs (461.3 kg)
- Bulk Cable Weight: 526 lbs/1000ft (783 kg/km)
Standards and Compliance
- Environmental Suitability: Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
- NEC / UL Compliance: Article 336, TC-ER, WTTC
- AWM Compliance: AWM 20328, AWM I/II A/B
- CEC / C(UL) Compliance: CIC, TC
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.608 Revision Date: 07-02-2026
- Footnote: C - CRATE REEL PUT-UP.
