Belden 7428WS 0601000 MachFlex™, 17+1G C #16 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER - Chrome, 1,000 ft Reel

$31,006.99
SKU:
7428WS 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7428WS
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7428WS 0601000 MachFlex™, 17+1G C #16 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER

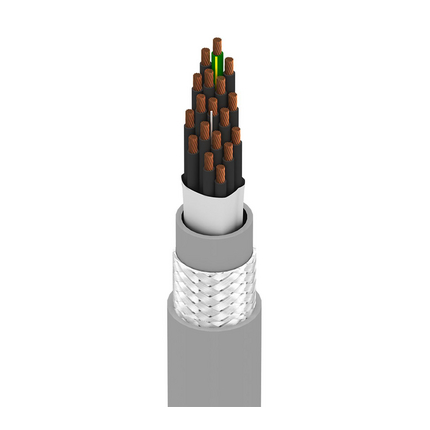

MachFlex™ for High Flex, 17+1G Conductor 16AWG (26x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 7428WS 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825186458
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Size: 16; Stranding: 26x30; Material: BC - Bare Copper
  • Element: Ground Wire; Size: 16; Stranding: 26x30; Material: BC - Bare Copper
  • Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Black and Numbered 12, Black and Numbered 13, Black and Numbered 14, Black and Numbered 15, Black and Numbered 16, Black and Numbered 17, Green/Yellow
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.56 in (14 mm)
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.714 in

Electrical Characteristics

  • Nom. Conductor DCR: 4 Ohm/1000ft (13 Ohm/km)
  • UL Voltage Rating: 1000 V RMS, 600 V RMS

Mechanical Characteristics

  • UL Temperature: 75°C Dry, 90°C Wet
  • Flexing Min.: 7.15 in
  • Max. Pull Tension: 630 lbs (290 kg)
  • Bulk Cable Weight: 351 lbs/1000ft (522 kg/km)

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading, 1202
  • NEC / UL Compliance: TC-ER, WTTC
  • AWM Compliance: AWM 20328, AWM I/II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.379 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
