Belden 7403WS 0605000 MachFlex™, 4+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, PLTC
MachFlex™ for High Flex, 4+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 7403WS 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825185420
Supplied as one 5,000 ft Reel.

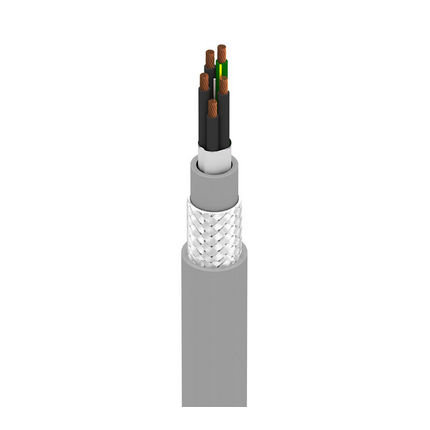

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 20 AWG; Stranding: 19x32; Material: BC - Bare Copper
- Element: Ground Wire; No. of Elements: 1; Size: 20 AWG; Stranding: 19x32; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm); Color Code: Black and Numbered
- Element: Ground Wire; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm); Color Code: Green/Yellow
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: non-Woven Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.233 in (5.92 mm); Color: Chrome
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.339 in
- Overall Cable Diameter (Nominal): 0.339 in
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.7 Ohm/1000ft; Max. Current: 7.2 Amps per Conductor at 30ºC
- Element: Ground Wire; Nom. Conductor DCR: 10.7 Ohm/1000ft (35.1 Ohm/km); Max. Current: 14.4 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 4.82 Ohm/1000ft (15.8 Ohm/km)
- UL Voltage Rating: 300 V; Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: UL : 90°C, AWM 20327 : 105°C; Operating: -40°C To 105°C
- Stationary Min.: 3.39 in (86.1 mm); Installation Min.: 3.39 in
- Max. Pull Tension: 75 lbs (34 kg)
- Bulk Cable Weight: 76 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
- NEC / UL Compliance: Article 725, PLTC
- AWM Compliance: AWM 20327, AWM I/II A/B
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.390 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
