Belden 7406W 0605000 MachFlex™, 11+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC - Chrome, 5,000 ft Reel

$25,911.99
SKU:
7406W 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7406W
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7406W 0605000 MachFlex™, 11+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC

MachFlex™ for High Flex, 11+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC

Ordering Details

  • Manufacturer Part Number: 7406W 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825185567

Supplied as one 5,000 ft Reel.

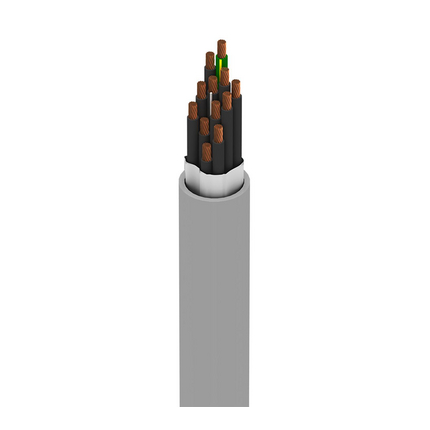

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Size: 20; Stranding: 19x32; Material: BC - Bare Copper
  • Element: Ground Wire; Size: 20; Stranding: 19x32; Material: BC - Bare Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Color Code: Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Green/Yellow
  • Material: No Shield
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.363 in

Electrical Characteristics

  • Nom. Conductor DCR: 8.8 Ohm/1000ft (29 Ohm/km)
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C (-5°C Flexing) To +90°C
  • Flexing Min.: 3.6 in
  • Max. Pull Tension: 156 lbs (70.8 kg)
  • Bulk Cable Weight: 82 lbs/1000ft (120 kg/km)

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading, 1202
  • NEC / UL Compliance: PLTC
  • AWM Compliance: AWM 20327, AWM I/II A/B
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.377 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 7406W Product Information
