Description
Belden 735C1 0085000 DS-3 and DS-4, 735C* Series, #25H-1 SPC Coax, CMR/CMG
25H AWG solid .017" silver-plated copper conductors, foam HDPE insulation, Duobond® (100% coverage) plus a tinned copper braid shield (95% coverage), inner PVC jackets, overall PVC jacket
Ordering Details
- Manufacturer Part Number: 735C1 0085000
- Color: Gray
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825184911
Supplied as one 5,000 ft Reel.

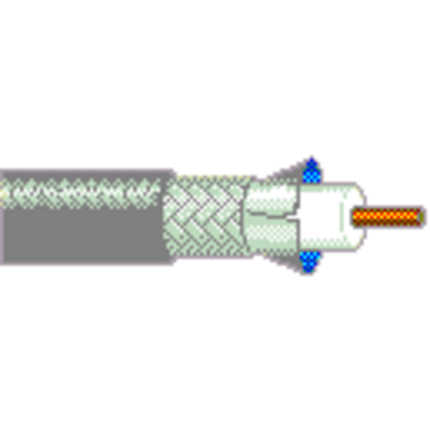

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Central Office wiring for DS3 transmissions
Construction Details
- RG Type: Mini 59
- Size: 25; Stranding: Solid; Nom. Diameter: 0.017 in; Material: SCCS - Silvered Copper Covered Steel
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.077 in (2.0 mm); Notes: HDPE
- Layer: 1; Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond®; Coverage: 100%
- Layer: 2; Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Inner Shield Table Notes: Tape bonded to dielectric
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.134 in
Electrical Characteristics
- Frequency: 5-150 MHz; Min. Return Loss: 32 dB
- Max. Attenuation: 1.1 dB/100ft
- Max. Attenuation: 1.5 dB/100ft
- Max. Attenuation: 2.3 dB/100ft
- Max. Attenuation: 3.4 dB/100ft
- Max. Attenuation: 4.99 dB/100ft
- Max. Attenuation: 6 dB/100ft
- Nom. Conductor DCR: 40 Ohm/1000ft (130 Ohm/km); Nom. Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.7 pF/ft (58.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 79%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -40°C To +75°C
- Max. Pull Tension: 36 lbs (16 kg)
- Bulk Cable Weight: 13 lbs/1000ft (19 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL1666 Vertical Shaft
- NEC / UL Compliance: CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.333 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
