Description
Belden 734C6 0083000 DS3/DS4 Central Office Coax, 6 x RG-59, 20 AWG Solid SC, Foil + 85% TC Braids, PVC Inner & Outer Jkts, CMR
DS3/DS4 Central Office Coax, 6 Coaxes, RG-59, 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 85% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, CMR
Ordering Details
- Manufacturer Part Number: 734C6 0083000
- Color: Gray
- Length: 3,000 ft
- Put-Up: Reel
- UPC/EAN: 612825184362
Supplied as one 3,000 ft Reel.

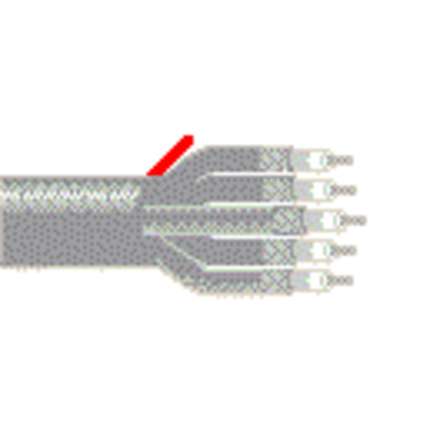

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications
Construction Details
- No. of Elements: 6; Size: 20 AWG; Stranding: Solid; Nom. Diameter: 0.032 in; Material: SC - Silvered Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.148 in (3.76 mm); Color Code: White
- Insulation Table Notes: Gas Injected
- Layer: 1; Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 2; Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Inner Shield Table Notes: Tape bonded to dielectric
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.235 in (5.97 mm)
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.777 in (19.7 mm)
- Overall Cable Diameter (Nominal): 0.777 in (19.7 mm)
Electrical Characteristics
- Frequency: 5-150 MHz; Min. Return Loss: 32 dB
- Frequency: 1 MHz; Max. Attenuation: 0.28 dB/100ft
- Frequency: 5 MHz; Max. Attenuation: 0.59 dB/100ft
- Frequency: 10 MHz; Max. Attenuation: 0.8 dB/100ft
- Frequency: 22.5 MHz; Max. Attenuation: 1.18 dB/100ft
- Frequency: 50 MHz; Max. Attenuation: 1.82 dB/100ft
- Frequency: 100 MHz; Max. Attenuation: 2.6 dB/100ft
- Frequency: 150 MHz; Max. Attenuation: 3.22 dB/100ft
- Nom. Conductor DCR: 10 Ohm/1000ft (33 Ohm/km); Nom. Inner Shield DCR: 2.4 Ohm/1000ft (7.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.8 pF/ft (55.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 80%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -40°C To +75°C
- Stationary Min.: 7.75 in (197 mm); Installation Min.: 7.75 in (197 mm)
- Max. Pull Tension: 362 lbs (164 kg)
- Bulk Cable Weight: 235 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
- Flammability / Reaction to Fire: UL1666 Vertical Shaft, FT4
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.183 Revision Date: 10-08-2026
- Footnote: C - CRATE REEL PUT-UP.
