Belden 734C12 0083000 DS3/DS4 Central Office Coax, 12 x RG-59, 20 AWG Solid SC, Foil + 85% TC Braids, PVC Inner & Outer Jkts, CMR - Gray, 3,000 ft Reel

$47,188.99
SKU:
734C12 0083000
Shipping:
Calculated at Checkout
Color:
Gray
Length:
3,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
734C12
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 734C12 0083000 DS3/DS4 Central Office Coax, 12 x RG-59, 20 AWG Solid SC, Foil + 85% TC Braids, PVC Inner & Outer Jkts, CMR

DS3/DS4 Central Office Coax, 12 Coaxes, RG-59, 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 85% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, CMR

Ordering Details

  • Manufacturer Part Number: 734C12 0083000
  • Color: Gray
  • Length: 3,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825184287

Supplied as one 3,000 ft Reel.

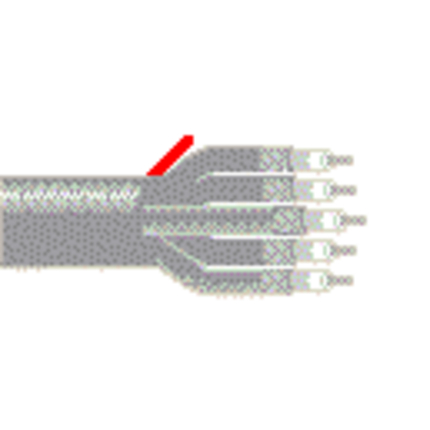

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Construction Details

  • RG Type: 59
  • Size: 20 AWG; Stranding: Solid; Nom. Diameter: 0.032 in; Material: SC - Silvered Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.148 in (3.76 mm)
  • Layer: 1; Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
  • Layer: 2; Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.235 in (5.97 mm)
  • Inner Jacket Table Notes: Each jacket gray and numbered
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 1.07 in (27.2 mm)

Electrical Characteristics

  • Frequency: 5 - 150 MHz; Min. Return Loss: 32 dB
  • Frequency: 1 MHz; Max. Attenuation: 0.28 dB/100ft
  • Frequency: 5 MHz; Max. Attenuation: 0.59 dB/100ft
  • Frequency: 10 MHz; Max. Attenuation: 0.8 dB/100ft
  • Frequency: 22.5 MHz; Max. Attenuation: 1.18 dB/100ft
  • Frequency: 50 MHz; Max. Attenuation: 1.82 dB/100ft
  • Frequency: 100 MHz; Max. Attenuation: 2.6 dB/100ft
  • Frequency: 150 MHz; Max. Attenuation: 3.22 dB/100ft
  • Nom. Conductor DCR: 10 Ohm/1000ft (33 Ohm/km); Nom. Inner Shield DCR: 2.4 Ohm/1000ft (7.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.8 pF/ft (55.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 80%
  • UL Voltage Rating: 300 V (CMR, CMG)

Mechanical Characteristics

  • Operating: -20°C to +75°C
  • Installation Min.: 10.7 in
  • Max. Pull Tension: 485 lbs (220 kg)
  • Bulk Cable Weight: 451 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL1666 Vertical Shaft
  • NEC / UL Compliance: CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.204 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
