Belden 6540FT 0011000 Thermostat & Control, #22-2c, TC, O/A Foil, CMP - Brown

$713.99
SKU:
6540FT 0011000
Shipping:
Calculated at Checkout
Color:
Brown
Manufacturer Status:
Active
Product Family:
6540FT
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6540FT 0011000 Thermostat & Control, #22-2c, TC, O/A Foil, CMP

Thermostat & Control Cable, Plenum-CMP, 1-22 AWG stranded tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket

Ordering Details

  • Manufacturer Part Number: 6540FT 0011000
  • Color: Brown
  • UPC/EAN: 612825178217

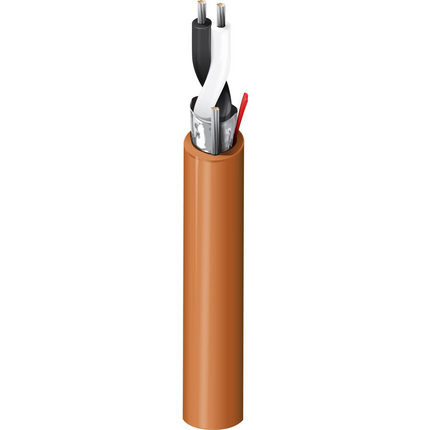

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Thermostat, Control, Noisy Environment

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.0175 in (0.445 mm); Nom. Insulation Diameter: 0.064 in mm; Color Code: Black & White
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.162 in
  • Overall Cable Diameter (Nominal): 0.162 in

Electrical Characteristics

  • Nom. Conductor DCR: 17.85 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 16.9 pF/ft (55.4 pF/m); Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 2.8 Amps per Conductor at 20ºC
  • Nom Outer Shield DCR: 11.8 Ohm/1000ft (38.7 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 1.62 in (41.1 mm); Installation Min.: 1.62 in
  • Max. Pull Tension: 27 lbs (12 kg)
  • Bulk Cable Weight: 14 lbs/1000ft

Standards and Compliance

  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.336 Revision Date: 09-07-2025

Resources

Belden 6540FT Product Information
