Belden 5540FT 0011000 Thermostat & Control, #22-2c, TC, O/A Foil, CMR - Brown

$314.99
SKU:
5540FT 0011000
Shipping:
Calculated at Checkout
Color:
Brown
Manufacturer Status:
Active
Product Family:
5540FT
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5540FT 0011000 Thermostat & Control, #22-2c, TC, O/A Foil, CMR

Thermostat & Control Cable, Riser-CMR, 1-22 AWG stranded tinned copper pair with foam polyolefin insulation, Beldfoil® shield, PVC jacket

Ordering Details

  • Manufacturer Part Number: 5540FT 0011000
  • Color: Brown
  • UPC/EAN: 612825164234
  • Manufacturer Footnote: C

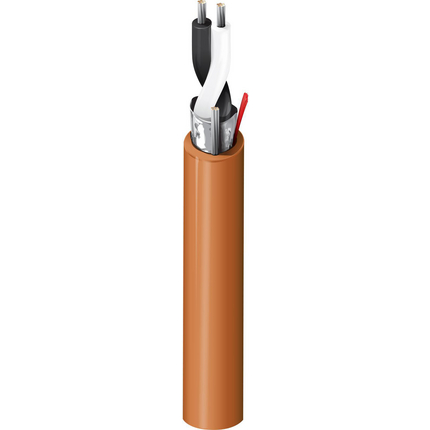

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Thermostat, Control, Noisy Environment

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.064 in (1.6 mm); Color Code: Black & White; Notes: HDPE
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.172 in
  • Overall Cable Diameter (Nominal): 0.172 in

Electrical Characteristics

  • Nom. Conductor DCR: 17.9 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 16.9 pF/ft (55.4 pF/m); Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 2.8 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 11.8 Ohm/1000ft (38.7 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 1.72 in (43.7 mm); Installation Min.: 1.72 in
  • Max. Pull Tension: 27 lbs (12 kg)
  • Bulk Cable Weight: 13 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL1666 Riser, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6540FT

History

  • Update and Revision: Revision Number: 0.341 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
