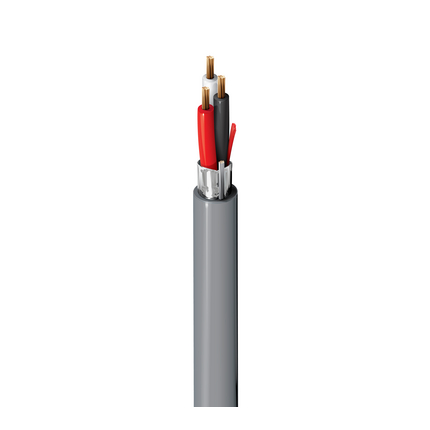

Belden 6301FE 877U1000 Security & Sound, 3 Conductor 18 AWG, BC, Shielded, CMP - Natural, 1,000 ft UnReel

$602.99
SKU:
6301FE 877U1000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
UnReel
Manufacturer Status:
Active
Product Family:
6301FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6301FE 877U1000 Security & Sound, 3 Conductor 18 AWG, BC, Shielded, CMP

Security & Commercial Audio Cable, Plenum-CMP, 3-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6301FE 877U1000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: UnReel
  • UPC/EAN: 612825175162

Supplied as one 1,000 ft UnReel.

Product Overview

  • Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.061 in (1.5 mm); Color Code: Black, Red, White
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.172 in (4.37 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.172 in (4.37 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 49.5 pF/ft (162 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 89 pF/ft (290 pF/m); Max. Current: 14 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 15.9 Ohm/1000ft (52.2 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
  • Max. Pull Tension: 73 lbs (33 kg)
  • Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5301FE

History

  • Update and Revision: Revision Number: 0.519 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
