Belden 6201FE 877U1000 Security & Sound, 3 Conductor 16 AWG BC, Shielded, CMP - Natural, 1,000 ft UnReel

$1,206.99
SKU:
6201FE 877U1000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
UnReel
Manufacturer Status:
Active
Product Family:
6201FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6201FE 877U1000 Security & Sound, 3 Conductor 16 AWG BC, Shielded, CMP

Security & Commercial Audio Cable, 3 Conductor 16 AWG stranded (19x29) bare copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum-CMP, Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6201FE 877U1000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: UnReel
  • UPC/EAN: 612825427100

Supplied as one 1,000 ft UnReel.

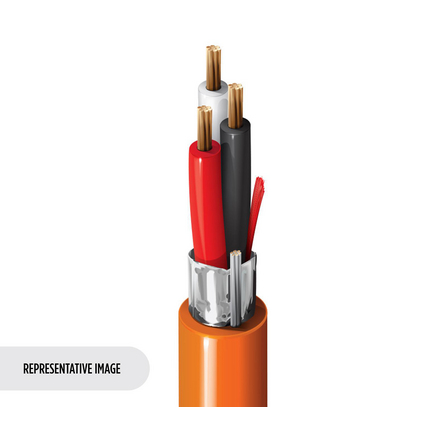

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 16 AWG; Stranding: 19x29; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Color Code: Black, Red, White
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.195 in (4.95 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4 Ohm/1000ft (13 Ohm/km); Nom. Capacitance Cond-to-Cond: 81.5 pF/ft (267 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 146.7 pF/ft (481.3 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 6.25 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 15.2 Ohm/1000ft (49.9 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 2.0 in (51 mm); Installation Min.: 2.0 in (51 mm)
  • Max. Pull Tension: 116 lbs (52.6 kg)
  • Bulk Cable Weight: 36 lbs/1000ft (54 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • Non-Plenum Number: 5201FE

History

  • Update and Revision: Revision Number: 0.357 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
