Belden 6284US 010500 PTZ, #23-2pr, #16-2c, CMP, Siamese
PTZ (Control + Power) Cable, Plenum-CMP, 2-24 AWG solid bare copper pairs with FEP insulation, 2-16 AWG stranded bare copper conductors with Flamarrest® insulation, Siamese Flamarrest® jacket
Ordering Details
- Manufacturer Part Number: 6284US 010500
- Color: Black
- UPC/EAN: 612825174615
- Manufacturer Footnote: C

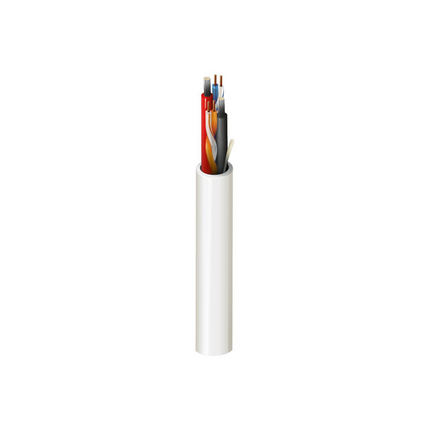

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), UTP-CCTV
- Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Construction Details
- Element: Cat 5e Pair; Size: 24; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 2
- Element: Pair1; Size: 16; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Cat 5e Pair; Material: FEP - Fluorinated Ethylene Propylene; Nom. Insulation Diameter: 0.035 in (0.89 mm); Color Code: Blue and White/Blue, Orange and White/Orange, Black & Red
- Element: Pair1; Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.077 in (2.0 mm)
- Element: Cat 5e Pair; Material: No Shield
- Element: Pair1; Material: No Shield
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Material Trade Name: Flamarrest®; Nom. Diameter: 0.183 x 0.368 in
Electrical Characteristics
- Max. Conductor DCR: 28.5902 Ohm/1000ft (93.7999 Ohm/km)
- Max. Conductor DCR: 45 Ohm/km (14 Ohm/1000ft)
- Max. Delay: 45 ns/ft; Max. Delay Skew: 70 ns/100m; Nom. Velocity of Prop.: 70%
- Frequency [MHz]: 1; Max. Insertion Loss (Attenuation) [dB/100m]: 2; Min. PSNEXT [dB]: 62; Min. PSACR [dB]: 60; Min. PSACRF (PSELFEXT) [dB]: 61; Min. RL (Return Loss) [dB]: 20; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 4; Max. Insertion Loss (Attenuation) [dB/100m]: 4.1; Min. PSNEXT [dB]: 53; Min. PSACR [dB]: 49; Min. PSACRF (PSELFEXT) [dB]: 49; Min. RL (Return Loss) [dB]: 23; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 8; Max. Insertion Loss (Attenuation) [dB/100m]: 5.8; Min. PSNEXT [dB]: 48; Min. PSACR [dB]: 43; Min. PSACRF (PSELFEXT) [dB]: 43; Min. RL (Return Loss) [dB]: 24.5; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 10; Max. Insertion Loss (Attenuation) [dB/100m]: 6.5; Min. PSNEXT [dB]: 47; Min. PSACR [dB]: 41; Min. PSACRF (PSELFEXT) [dB]: 41; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 16; Max. Insertion Loss (Attenuation) [dB/100m]: 8.2; Min. PSNEXT [dB]: 44; Min. PSACR [dB]: 36; Min. PSACRF (PSELFEXT) [dB]: 37; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 20; Max. Insertion Loss (Attenuation) [dB/100m]: 9.3; Min. PSNEXT [dB]: 42; Min. PSACR [dB]: 34; Min. PSACRF (PSELFEXT) [dB]: 35; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 25; Max. Insertion Loss (Attenuation) [dB/100m]: 10.4; Min. PSNEXT [dB]: 41; Min. PSACR [dB]: 31; Min. PSACRF (PSELFEXT) [dB]: 33; Min. RL (Return Loss) [dB]: 24.3; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation) [dB/100m]: 11.7; Min. PSNEXT [dB]: 39; Min. PSACR [dB]: 28; Min. PSACRF (PSELFEXT) [dB]: 31; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation) [dB/100m]: 17; Min. PSNEXT [dB]: 35; Min. PSACR [dB]: 19; Min. PSACRF (PSELFEXT) [dB]: 24; Min. RL (Return Loss) [dB]: 21.5; Max./Min. Fitted Impedance: 100 ± 15%
- Frequency [MHz]: 100; Max. Insertion Loss (Attenuation) [dB/100m]: 22; Min. PSNEXT [dB]: 32; Min. PSACR [dB]: 11; Min. PSACRF (PSELFEXT) [dB]: 21; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Fitted Impedance: 100 ± 15%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -10°C To +75°C; Installation: 0°C To +75°C
- Max. Pull Tension: 100 lbs (45 kg)
- Bulk Cable Weight: 45 lbs/1000ft (67 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
- Flammability / Reaction to Fire: NFPA 262, FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- ISO/IEC Compliance: ISO/IEC 11801, Category 5e for data pairs
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ISO/IEC 11801, Category 5e
- Non-Plenum Number: 5284US
Product Notes
- Notes: Overall jacket sequentially marked.
History
- Update and Revision: Revision Number: 0.487 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
