Belden 6284US 009500 PTZ, #23-2pr, #16-2c, CMP, Siamese - White

$576.99
SKU:
6284US 009500
Shipping:
Calculated at Checkout
Color:
White
Manufacturer Status:
Active
Product Family:
6284US
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6284US 009500 PTZ, #23-2pr, #16-2c, CMP, Siamese

PTZ (Control + Power) Cable, Plenum-CMP, 2-24 AWG solid bare copper pairs with FEP insulation, 2-16 AWG stranded bare copper conductors with Flamarrest® insulation, Siamese Flamarrest® jacket

Ordering Details

  • Manufacturer Part Number: 6284US 009500
  • Color: White
  • UPC/EAN: 612825174608
  • Manufacturer Footnote: C

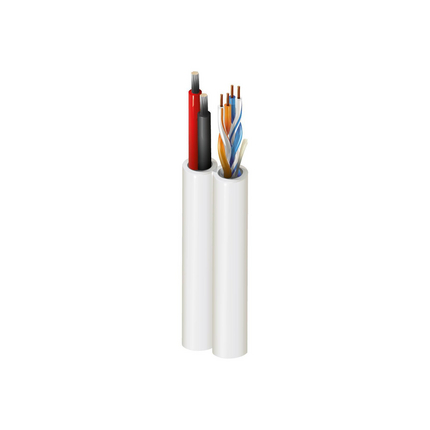

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), UTP-CCTV
  • Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

  • Element: Cat 5e Pair; Size: 24; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 2
  • Element: Pair1; Size: 16; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Cat 5e Pair; Material: FEP - Fluorinated Ethylene Propylene; Nom. Insulation Diameter: 0.035 in (0.89 mm); Color Code: Blue and White/Blue, Orange and White/Orange, Black & Red
  • Element: Pair1; Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.077 in (2.0 mm)
  • Element: Cat 5e Pair; Material: No Shield
  • Element: Pair1; Material: No Shield
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Material Trade Name: Flamarrest®; Nom. Diameter: 0.183 x 0.368 in

Electrical Characteristics

  • Max. Conductor DCR: 28.5902 Ohm/1000ft (93.7999 Ohm/km)
  • Max. Conductor DCR: 45 Ohm/km (14 Ohm/1000ft)
  • Max. Delay: 45 ns/ft; Max. Delay Skew: 70 ns/100m; Nom. Velocity of Prop.: 70%
  • Frequency [MHz]: 1; Max. Insertion Loss (Attenuation) [dB/100m]: 2; Min. PSNEXT [dB]: 62; Min. PSACR [dB]: 60; Min. PSACRF (PSELFEXT) [dB]: 61; Min. RL (Return Loss) [dB]: 20; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 4; Max. Insertion Loss (Attenuation) [dB/100m]: 4.1; Min. PSNEXT [dB]: 53; Min. PSACR [dB]: 49; Min. PSACRF (PSELFEXT) [dB]: 49; Min. RL (Return Loss) [dB]: 23; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 8; Max. Insertion Loss (Attenuation) [dB/100m]: 5.8; Min. PSNEXT [dB]: 48; Min. PSACR [dB]: 43; Min. PSACRF (PSELFEXT) [dB]: 43; Min. RL (Return Loss) [dB]: 24.5; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 10; Max. Insertion Loss (Attenuation) [dB/100m]: 6.5; Min. PSNEXT [dB]: 47; Min. PSACR [dB]: 41; Min. PSACRF (PSELFEXT) [dB]: 41; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 16; Max. Insertion Loss (Attenuation) [dB/100m]: 8.2; Min. PSNEXT [dB]: 44; Min. PSACR [dB]: 36; Min. PSACRF (PSELFEXT) [dB]: 37; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 20; Max. Insertion Loss (Attenuation) [dB/100m]: 9.3; Min. PSNEXT [dB]: 42; Min. PSACR [dB]: 34; Min. PSACRF (PSELFEXT) [dB]: 35; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 25; Max. Insertion Loss (Attenuation) [dB/100m]: 10.4; Min. PSNEXT [dB]: 41; Min. PSACR [dB]: 31; Min. PSACRF (PSELFEXT) [dB]: 33; Min. RL (Return Loss) [dB]: 24.3; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation) [dB/100m]: 11.7; Min. PSNEXT [dB]: 39; Min. PSACR [dB]: 28; Min. PSACRF (PSELFEXT) [dB]: 31; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation) [dB/100m]: 17; Min. PSNEXT [dB]: 35; Min. PSACR [dB]: 19; Min. PSACRF (PSELFEXT) [dB]: 24; Min. RL (Return Loss) [dB]: 21.5; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 100; Max. Insertion Loss (Attenuation) [dB/100m]: 22; Min. PSNEXT [dB]: 32; Min. PSACR [dB]: 11; Min. PSACRF (PSELFEXT) [dB]: 21; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Fitted Impedance: 100 ± 15%
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -10°C To +75°C; Installation: 0°C To +75°C
  • Max. Pull Tension: 100 lbs (45 kg)
  • Bulk Cable Weight: 45 lbs/1000ft (67 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Reaction to Fire: NFPA 262, FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • ISO/IEC Compliance: ISO/IEC 11801, Category 5e for data pairs
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISO/IEC 11801, Category 5e
  • Non-Plenum Number: 5284US

Product Notes

  • Notes: Overall jacket sequentially marked.

History

  • Update and Revision: Revision Number: 0.487 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 6284US Product Information
