Belden 6222UL 002500 Fire Alarm, #16-4c BC, FPLP - Red

$355.99
SKU:
6222UL 002500
Shipping:
Calculated at Checkout
Color:
Red
Manufacturer Status:
Active
Product Family:
6222UL
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6222UL 002500 Fire Alarm, #16-4c BC, FPLP

Fire Alarm Cable, Plenum-FPLP, 4-16 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6222UL 002500
  • Color: Red
  • UPC/EAN: 612825174486
  • Manufacturer Footnote: C

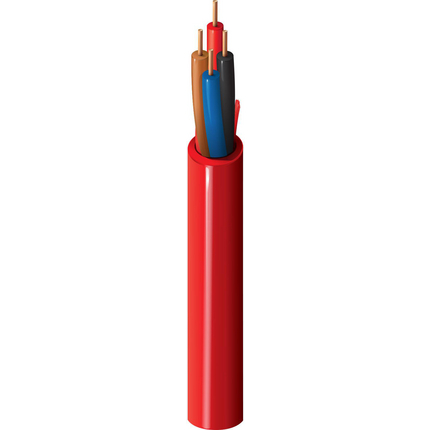

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 16 AWG; Stranding: Solid; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.067 in (1.7 mm); Color Code: Black, Red, Brown, Blue
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.194 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.194 in

Electrical Characteristics

  • Nom. Conductor DCR: 4.18 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 37 pF/ft (120 pF/m); Max. Current: 5 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C To +75°C
  • Stationary Min.: 1.55 in (39.4 mm); Installation Min.: 1.55 in
  • Max. Pull Tension: 124.8 lbs (56.61 kg)
  • Bulk Cable Weight: 41 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: NFPA 262 (UL910)
  • NEC / UL Compliance: Article 760, FPLP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): California State Fire Marshall
  • Non-Plenum Number: 5222UL

History

  • Update and Revision: Revision Number: 0.305 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
