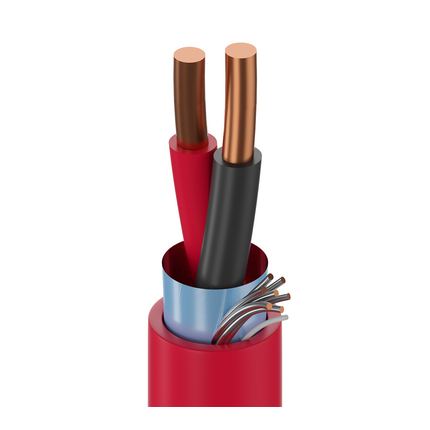

Belden 6220FL 0101000 Fire Alarm, #16-2c BC, Shielded, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-16 AWG solid bare copper conductors with Flamarrest® insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord
Ordering Details
- Manufacturer Part Number: 6220FL 0101000
- Color: Black
- UPC/EAN: 612825378303
Product Overview
- Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 16 AWG; Stranding: Solid; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.071 in (1.8 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (Solid) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.178 in (4.52 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.178 in (4.52 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 3.85 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 77 pF/ft (250 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 139 pF/ft (456 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 14.4 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 16.9 Ohm/1000ft (55.4 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C to +75°C
- Stationary Min.: 2.67 in (67.8 mm); Installation Min.: 2.67 in (67.8 mm)
- Max. Pull Tension: 68 lbs (31 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 760, FPLP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): California State Fire Marshall
- Non-Plenum Number: 5220FL
History
- Update and Revision: Revision Number: 0.466 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
