Description
Belden 6320UL 0101000 Fire Alarm, #18-2c BC, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-18 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
Ordering Details
- Manufacturer Part Number: 6320UL 0101000
- Color: Black
- UPC/EAN: 612825175919

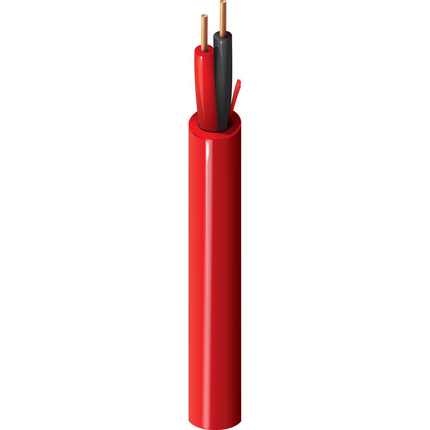

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: Solid; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.057 in (1.4 mm); Color Code: Black, Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.144 in (3.66 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.144 in (3.66 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 14 Amps per conductor @ 25°C
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C to +75°C
- Stationary Min.: 1.15 in (29.2 mm); Installation Min.: 1.15 in (29.2 mm)
- Max. Pull Tension: 39 lbs (18 kg)
- Bulk Cable Weight: 15 lbs/1000ft (22 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
- NEC / UL Compliance: Article 760, FPLP
- CEC / C(UL) Compliance: FT6
- European Directive Compliance: EU CE Mark
- Other Standard Compliance(s): California State Fire Marshall
- Non-Plenum Number: 5320UL
History
- Update and Revision: Revision Number: 0.574 Revision Date: 03-03-2026
- Footnote: C - CRATE REEL PUT-UP.
