Description
Belden 6100FE 8771000 Security & Sound, 2 Conductor 14 AWG BC, Shielded, CL2P
Security & Commercial Audio Cable, Plenum-CL2P, FPLP 2-14 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Ordering Details
- Manufacturer Part Number: 6100FE 8771000
- Color: Natural
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825173311
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

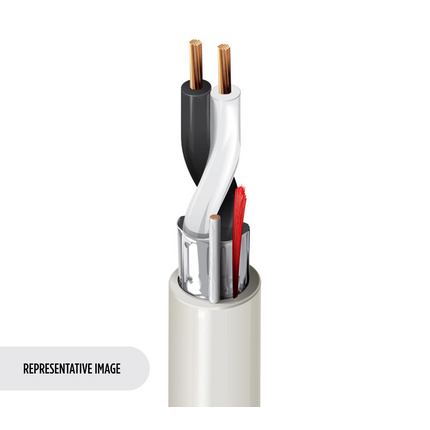

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Intercom/PA Systems, Sound/Audio Systems
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 14 AWG; Stranding: 19x26; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.012 in (0.30 mm); Nom. Insulation Diameter: 0.094 in (2.4 mm); Color Code: Black, White
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.220 in (5.59 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.220 in (5.59 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 2.54 Ohm/1000ft (8.33 Ohm/km); Nom. Capacitance Cond-to-Cond: 85 pF/ft (280 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 153 pF/ft (502 pF/m); Nom. Inductance: 0.145 µH/ft (0.476 µH/m); Max. Current: 25 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 10 Ohm/1000ft (33 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C to +75°C
- Stationary Min.: 2.2 in (56 mm); Installation Min.: 2.2 in (56 mm)
- Max. Pull Tension: 104 lbs (47.2 kg)
- Bulk Cable Weight: 38 lbs/1000ft (57 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
- NEC / UL Compliance: Article 725, Article 760, CL2P, FPLP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 5100FE
History
- Update and Revision: Revision Number: 0.647 Revision Date: 10-12-2026
- Footnote: C - CRATE REEL PUT-UP.
