Belden 5503FE 0081000 Security & Sound, #22-5c, BC, Shielded, CMR - Gray

$284.99
SKU:
5503FE 0081000
Shipping:
Calculated at Checkout
Color:
Gray
Manufacturer Status:
Active
Product Family:
5503FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

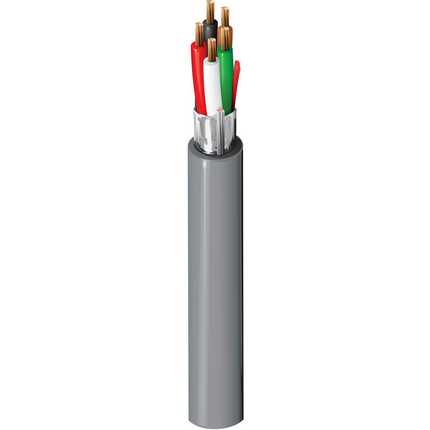

Belden 5503FE 0081000 Security & Sound, #22-5c, BC, Shielded, CMR

Security & Sound Cable, Riser-CMR, 5-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5503FE 0081000
  • Color: Gray
  • UPC/EAN: 612825163718

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

  • Element: Conductor(s); No. of Elements: 5; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PO - Polyolefin; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.045 in (1.1 mm); Color Code: Black, Red, White, Green, Brown
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.157 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.157 in

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 16.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 40 pF/ft (130 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 2.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 15.3 Ohm/1000ft (50.2 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 1.57 in (39.9 mm); Installation Min.: 1.57 in
  • Max. Pull Tension: 51 lbs (23 kg)
  • Bulk Cable Weight: 18 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1666 Riser, FT4
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6503FE

History

  • Update and Revision: Revision Number: 0.315 Revision Date: 09-07-2025

Resources

Belden 5503FE Product Information
