Belden 5403FE 0081000 Security & Sound, #20-5c, BC, Shielded, CMR
Security & Sound Cable, Riser-CMR, 5-20 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5403FE 0081000
- Color: Gray
- UPC/EAN: 612825337065
- Manufacturer Footnote: C

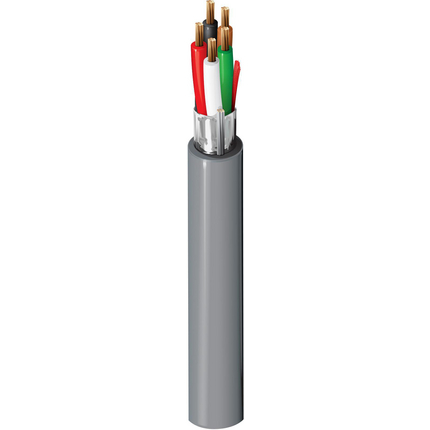

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 5; Size: 20 AWG; Stranding: 7x28; Material: BC - Bare Copper
- Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Color Code: Black, Red, White, Green, Brown
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.177 in (4.50 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.177 in (4.50 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.2 Ohm/1000ft (33.5 Ohm/km); Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 46.75 pF/ft (153.4 pF/m); Max. Current: 3 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 10.9 Ohm/1000ft (35.8 Ohm/km)
- UL Voltage Rating: 300 V (CMR)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 1.8 in (46 mm); Installation Min.: 1.8 in (46 mm)
- Max. Pull Tension: 72 lbs (33 kg)
- Bulk Cable Weight: 26 lbs/1000ft (39 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL1666 Riser
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6403FE
History
- Update and Revision: Revision Number: 0.301 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
