Description

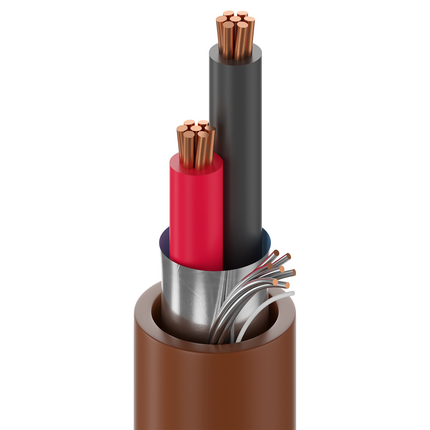

Belden 5500FE 008500 Security & Sound, 2 Conductor 22 AWG, BC, Shielded, CMR
Security & Sound Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5500FE 008500
- Color: Gray
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825162773
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.045 in (1.1 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.126 in (3.20 mm); Ripcord: Yes
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 16.9 Ohm/1000ft (55.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 34.5 pF/ft (113 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 62 pF/ft (200 pF/m); Max. Current: 6 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 16.1 Ohm/1000ft (52.8 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 1.3 in (33 mm); Installation Min.: 1.3 in (33 mm)
- Max. Pull Tension: 23.7 lbs (10.8 kg)
- Bulk Cable Weight: 10 lbs/1000ft (15 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6500FH
History
- Update and Revision: Revision Number: 0.698 Revision Date: 02-20-2026
