Description
Belden 5300FE 008500 Security & Sound, 2 Conductor 18 AWG, BC, Shielded, CMR
Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5300FE 008500
- Color: Gray
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825336754
Supplied as one 500 ft Reel.

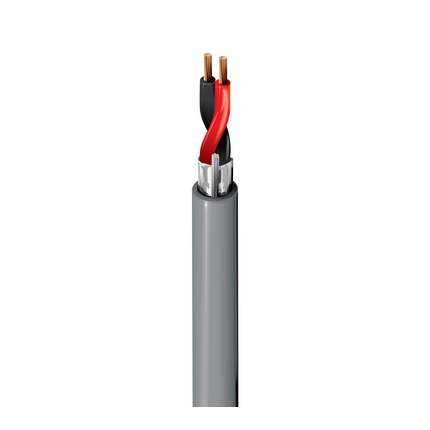

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Intercom/PA Systems, Sound/Audio Systems
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
- Element: Conductor(s); Material: PO - Polyolefin; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.162 in (4.11 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.162 in (4.11 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 53 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 95.5 pF/ft (313 pF/m); Nom. Inductance: 0.145 µH/ft (0.476 µH/m); Max. Current: 5 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 16.25 Ohm/1000ft (53.31 Ohm/km)
- UL Voltage Rating: 300 V (CMR)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 1.6 in (41 mm); Installation Min.: 1.6 in (41 mm)
- Max. Pull Tension: 58 lbs (26 kg)
- Bulk Cable Weight: 18 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6300FE
History
- Update and Revision: Revision Number: 0.548 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
