Belden 5401FE 008500 Security & Sound, 3 Conductor 20 AWG, BC, O/A Foil, CMR - Gray, 500 ft Reel

$196.99
SKU:
5401FE 008500
Shipping:
Calculated at Checkout
Color:
Gray
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
5401FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5401FE 008500 Security & Sound, 3 Conductor 20 AWG, BC, O/A Foil, CMR

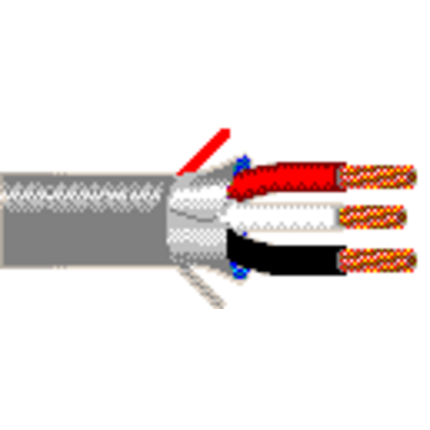

Security & Commercial Audio Cable, Riser-CMR, 3-20 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5401FE 008500
  • Color: Gray
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825162025

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 20 AWG; Stranding: 7x28; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.052 in (1.3 mm); Color Code: Black, Red, White
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.149 in (3.78 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.149 in (3.78 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 10.2 Ohm/1000ft (33.5 Ohm/km); Nom. Capacitance Cond-to-Cond: 50 pF/ft (160 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 90 pF/ft (300 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 3.75 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 16.1 Ohm/1000ft (52.8 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C To +75°C
  • Stationary Min.: 1.49 in (37.8 mm); Installation Min.: 1.49 in (37.8 mm)
  • Max. Pull Tension: 43.3 lbs (19.6 kg)
  • Bulk Cable Weight: 17 lbs/1000ft (25 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6401FE

History

  • Update and Revision: Revision Number: 0.619 Revision Date: 07-23-2026
  • Footnote: C - CRATE REEL PUT-UP.
