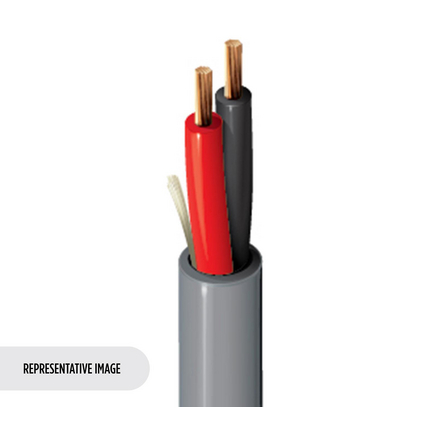

Belden 5301UE 008500 Security & Sound, 3 Conductor 18 AWG, BC, CMR - Gray, 500 ft Reel

$240.99
SKU:
5301UE 008500
Shipping:
Calculated at Checkout
Color:
Gray
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
5301UE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5301UE 008500 Security & Sound, 3 Conductor 18 AWG, BC, CMR

Security & Commercial Audio Cable, Riser-CMR, 3-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5301UE 008500
  • Color: Gray
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825159476

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PO - Polyolefin; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Black, Red, White
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.167 in (4.24 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.167 in (4.24 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Cond: 20.25 pF/ft (66.44 pF/m); Max. Current: 5 Amps per conductor @ 25°C
  • UL Voltage Rating: 300 V (CMR)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
  • Max. Pull Tension: 67 lbs (30 kg)
  • Bulk Cable Weight: 22 lbs/1000ft (33 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6301UE

History

  • Update and Revision: Revision Number: 0.645 Revision Date: 06-09-2026
  • Footnote: C - CRATE REEL PUT-UP.
