Belden 5306FE 008500 Security & Sound, #18-8c, BC, Shielded, CMR

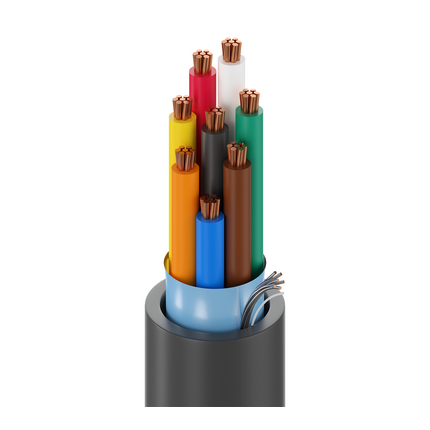

Security & Sound Cable, Riser-CMR, 8-18 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5306FE 008500
- Color: Gray
- UPC/EAN: 612825159971
- Manufacturer Footnote: C
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 8; Size: 18; Stranding: 7x26; Material: BC - Bare Copper
- Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Black, Red, White, Green, Brown, Blue, Orange, Yellow
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Diameter: 0.245 in (6.22 mm); Ripcord: Yes
Electrical Characteristics
- Nom. Conductor DCR: 6.86 Ohm/1000ft (22.5 Ohm/km); Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 48.5 pF/ft (159 pF/m); Max. Current: 3.5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 14.4 Ohm/1000ft (47.2 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C
- Stationary Min.: 2.45 in (62.2 mm); Installation Min.: 2.45 in (62.2 mm)
- Max. Pull Tension: 193.2 lbs (87.63 kg)
- Bulk Cable Weight: 56 lbs/1000ft (83 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6306FE
History
- Update and Revision: Revision Number: 0.607 Revision Date: 04-06-2026
- Footnote: C - CRATE REEL PUT-UP.
