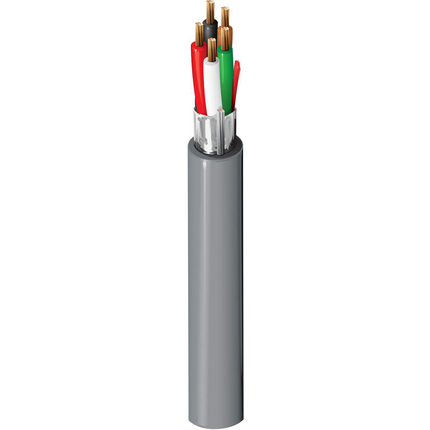

Belden 5303FE 008500 Security & Sound, #18-5c, BC, Shielded, CMR - Gray

$276.99
SKU:
5303FE 008500
Shipping:
Calculated at Checkout
Color:
Gray
Manufacturer Status:
Active
Product Family:
5303FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5303FE 008500 Security & Sound, #18-5c, BC, Shielded, CMR

Security & Sound Cable, Riser-CMR, 5-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5303FE 008500
  • Color: Gray
  • UPC/EAN: 612825159834
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

  • Element: Conductor(s); No. of Elements: 5; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PO - Polyolefin; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Black, Red, White, Green, Brown
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.205 in (5.21 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.205 in (5.21 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 29 pF/ft (95 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 52.25 pF/ft (171.4 pF/m); Max. Current: 4 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 14.4 Ohm/1000ft (47.2 Ohm/km)
  • UL Voltage Rating: 300 V (CMR)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
  • Max. Pull Tension: 126 lbs (57.2 kg)
  • Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6303FE

History

  • Update and Revision: Revision Number: 0.446 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
