Belden 5000UE 008500 Security & Sound, 2 Conductor 12 AWG, BC, Unshielded, CL3R-FPLR - Gray, 500 ft Reel

$553.99
SKU:
5000UE 008500
Shipping:
Calculated at Checkout
Color:
Gray
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
5000UE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

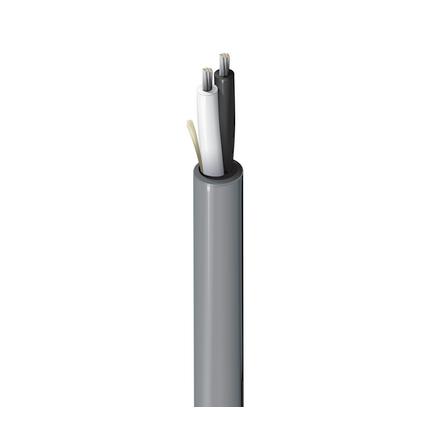

Belden 5000UE 008500 Security & Sound, 2 Conductor 12 AWG, BC, Unshielded, CL3R-FPLR

Security & Commercial Audio Cable, Riser-CL3R-FPLR 2-12 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5000UE 008500
  • Color: Gray
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825154594
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Fire Alarm Systems (Red only)

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 12 AWG; Stranding: 19x25; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.113 in (2.87 mm); Color Code: Black, White
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.26 in (6.6 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.26 in (6.6 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 1.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 24 pF/ft (79 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 30 Amps per conductor @ 30°C
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
  • Max. Pull Tension: 152 lbs (68.9 kg)
  • Bulk Cable Weight: 51 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 760, CL3R, FPLR
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6000UE

History

  • Update and Revision: Revision Number: 0.520 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
