Belden 35614 010500 Lead Wire, #14 Str TC, XLPO Ins, AWM 3173 - Black, 500 ft Reel

$703.99
SKU:
35614 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
35614
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 35614 010500 Lead Wire, #14 Str TC, XLPO Ins, AWM 3173

Rubber Lead Wire, 14AWG (41x30) Tinned Copper, XLPO Insulation, AWM 3173 CSA TYPE CL1251 600V 125C

Ordering Details

  • Manufacturer Part Number: 35614 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825144991
  • Manufacturer Footnote: F

Supplied as one 500 ft Reel.

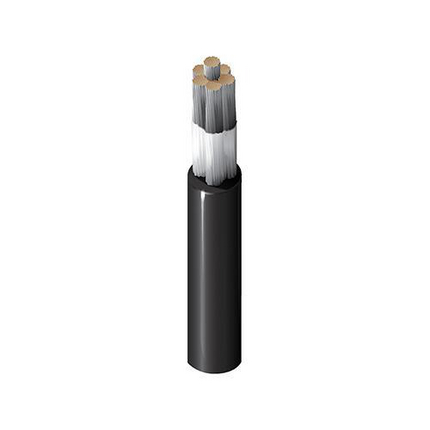

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Class 130(B) motor lead systems, internal wiring of appliances

Construction Details

  • Size: 14; Stranding: 41x30; Material: TC - Tinned Copper
  • Material: XLP, XLPO, XLPE (Thermoset); Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.155 in (3.94 mm)
  • Overall Cable Diameter (Nominal): 0.137 in (3.48 mm)

Electrical Characteristics

  • Max. Current: Single conductor in free air @ 30ºC: 42 A
  • UL Voltage Rating: 600 V RMS

Mechanical Characteristics

  • UL Temperature: 125°C
  • Bulk Cable Weight: 19 lbs/1000ft (28 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • AWM Compliance: AWM 3173
  • CEC / C(UL) Compliance: CL-1251
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.364 Revision Date: 10-27-2026
  • Footnote: C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Resources

Belden 35614 Product Information
