Description
Belden 35612 010500 Lead Wire, #12 Str TC, XLPO Ins, AWM 3173
Rubber Lead Wire, 12AWG (65x30) Tinned Copper, XLPO Insulation, AWM 3173 CSA TYPE CL1251 600V 125C
Ordering Details
- Manufacturer Part Number: 35612 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825144977
- Manufacturer Footnote: F
Supplied as one 500 ft Reel.

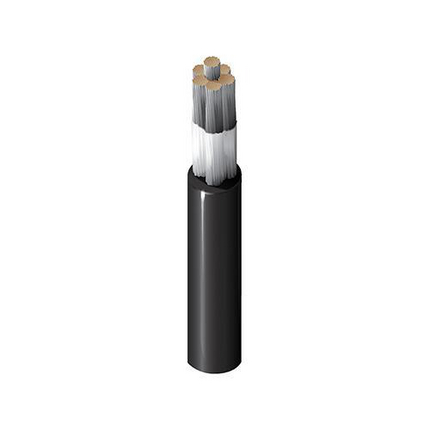

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B) motor lead systems, internal wiring of appliances
Construction Details
- Size: 12; Stranding: 65x30; Material: TC - Tinned Copper
- Material: XLP, XLPO, XLPE (Thermoset); Nom. Thickness: 0.034 in (0.86 mm); Nom. Insulation Diameter: 0.155 in (3.94 mm)
- Overall Cable Diameter (Nominal): 0.155 in (3.94 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 125°C
- Bulk Cable Weight: 27.300 lbs/1000ft (40.627 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3173
- CEC / C(UL) Compliance: CL-1251
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.362 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
