Belden 33308 010500 Lead Wire, #8 Str TC, Silicone Ins, AWM 3213 - Black, 500 ft Reel

$4,553.99
SKU:
33308 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
33308
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 33308 010500 Lead Wire, #8 Str TC, Silicone Ins, AWM 3213

Low Temp Rubber Lead Wire, 8AWG (84x27) Tinned Copper, Silicone Insulation, AWM 3213 CSA TYPE AWM 600V 150C

Ordering Details

  • Manufacturer Part Number: 33308 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825143390
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

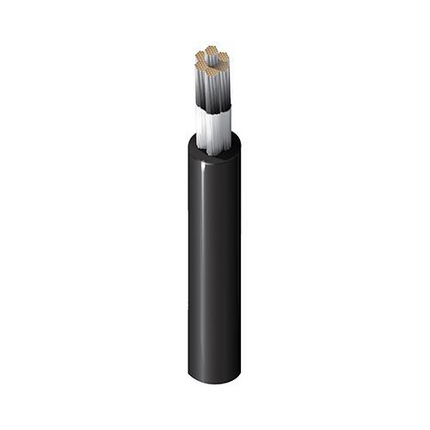

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Class 155(F) or Class 180(H) motor lead systems , high temperature applications, internal wiring of lighting fixtures and appliances

Construction Details

  • Size: 8; Stranding: 84x27; Material: TC - Tinned Copper
  • Material: Silicone Rubber; Nom. Thickness: 0.063 in (1.6 mm)
  • Overall Cable Diameter (Nominal): 0.283 in (7.19 mm)

Electrical Characteristics

  • UL Voltage Rating: 600 V RMS

Mechanical Characteristics

  • UL Temperature: 150°C
  • Bulk Cable Weight: 40.5 lbs/1000ft (60.3 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • AWM Compliance: AWM 3213, CSA AWM I B
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C)

History

  • Update and Revision: Revision Number: 0.369 Revision Date: 10-27-2026
  • Footnote: C - CRATE REEL PUT-UP.
