Description
Belden 33318 010500 Lead Wire, #18 Str TC, Silicone Ins, AWM 3212
Low Temp Rubber Lead Wire, 18AWG (16x30) Tinned Copper, Silicone Insulation, AWM 3212 CSA TYPE AWM 600V 150C
Ordering Details
- Manufacturer Part Number: 33318 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825143482
- Manufacturer Footnote: F
Supplied as one 500 ft Reel.

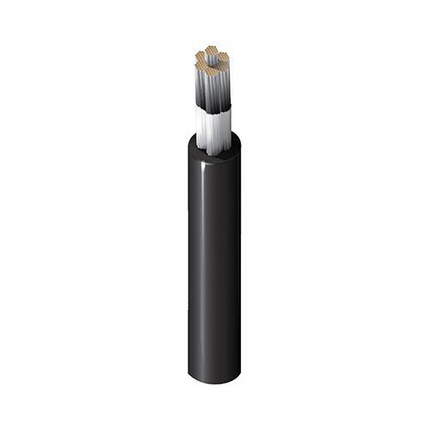

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 155(F) or Class 180(H) motor lead systems , high temperature applications, internal wiring of lighting fixtures and appliances
Construction Details
- Size: 18; Stranding: 16x30; Material: TC - Tinned Copper
- Material: Silicone Rubber; Nom. Thickness: 0.048 in (1.2 mm)
- Overall Cable Diameter (Nominal): 0.142 in (3.61 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 150°C
- Bulk Cable Weight: 7 lbs/1000ft (10 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3212, CSA AWM I B
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.369 Revision Date: 10-27-2026
- Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
