Description

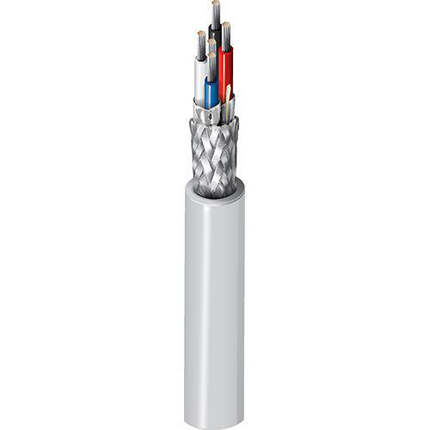

Belden 3085A 5605000 DeviceBus®, 2 Pr #22+24 Str TC, PVC+FPE Ins, IS+OA TC Brd, CPE Jkt, CMG, CL2
DeviceBus® for ODVA DeviceNet™, 2 Pair 22+24AWG (19x34+19x36) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, CPE Outer Jacket, CMG, CL2
Ordering Details
- Manufacturer Part Number: 3085A 5605000
- Color: Yellow, Bright
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825141020
- Manufacturer Footnote: C Z
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
Construction Details
- Element: Power Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 19x34; Material: TC - Tinned Copper
- Element: Data Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 19x36; Material: TC - Tinned Copper
- Element: Power Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.072 in (1.8 mm); Color Code: Red & Black
- Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.026 in (0.66 mm); Nom. Insulation Diameter: 0.077 in (2.0 mm); Color Code: Blue & White
- Element: Power Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%; Drainwire Type: 22 AWG (19x34) TC
- Material: CPE - Chlorinated Polyethylene; Nom. Thickness: 0.033 in (0.84 mm); Nom. Diameter: 0.280 in (7.11 mm)
- Outer Jacket1 Table Notes: Jacket OD +/- 0.005
- Overall Cable Diameter (Nominal): 0.280 in (7.11 mm)
Electrical Characteristics
- Element: Power Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Max. Conductor DCR: 17.5 Ohm/1000ft; Nom. Inner Shield DCR: 7.95 Ohm/1000ft (26.1 Ohm/km); Max. Current: 6 Amps per Conductor at 30ºC
- Element: Data Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft (94.5 Ohm/km); Max. Conductor DCR: 28 Ohm/100m; Nom. Inner Shield DCR: 7.45 Ohm/1000ft (24.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 12.0 pF/ft (39.4 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Delay: 1.36 ns/ft; Nom. Velocity of Prop.: 75%; Max. Current: 6 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 5 Ohm/1000ft (16 Ohm/km)
- UL Voltage Rating: 300 V (CMG, CL2)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 2.8 in (71 mm); Installation Min.: 2.8 in (71 mm)
- Max. Pull Tension: 70.06 lbs (31.78 kg)
- Bulk Cable Weight: 46 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEEE 1202 FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800, CL2, CMG
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ODVA Class 2 Thin
Product Notes
- Notes: Thin. Meter marks on jacket to aid users in installation. ODVA Devicenet is an Open DeviceNet Vendor Association, Inc. trademark.
History
- Update and Revision: Revision Number: 0.556 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
