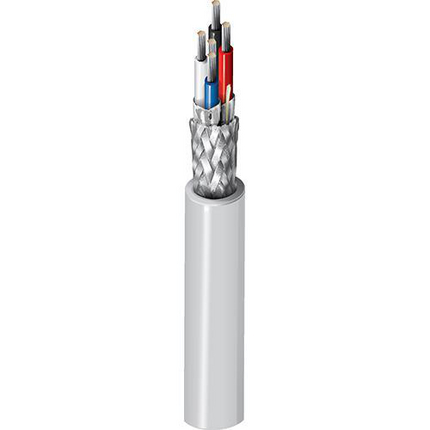

Belden 3084A T5U5000 DeviceBus®, 2 Pr #22+24 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, CMG, CL2 - Gray T5U, 5,000 ft Reel

$24,411.99
SKU:
3084A T5U5000
Shipping:
Calculated at Checkout
Color:
Gray T5U
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3084A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 3084A T5U5000 DeviceBus®, 2 Pr #22+24 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, CMG, CL2

DeviceBus® for ODVA DeviceNet™, 2 Pair 22+24AWG (19x34+19x36) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CMG, CL2

Ordering Details

  • Manufacturer Part Number: 3084A T5U5000
  • Color: Gray T5U
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825140917
  • Manufacturer Footnote: C

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.

Construction Details

  • Element: Power Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 19x34; Material: TC - Tinned Copper
  • Element: Data Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 19x36; Material: TC - Tinned Copper
  • Element: Power Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.072 in (1.8 mm); Color Code: Red & Black
  • Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.026 in (0.66 mm); Nom. Insulation Diameter: 0.077 in (2.0 mm); Color Code: Blue & White
  • Element: Power Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%; Drainwire Type: 22 AWG (19x34) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.280 in (7.11 mm)
  • Outer Jacket1 Table Notes: Jacket OD +/- 0.005
  • Overall Cable Diameter (Nominal): 0.280 in (7.11 mm)

Electrical Characteristics

  • Element: Power Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Max. Conductor DCR: 17.5 Ohm/1000ft; Nom. Inner Shield DCR: 7.95 Ohm/1000ft (26.1 Ohm/km); Nom. Inductance: 0.221 µH/ft (0.725 µH/m); Max. Current: 6 Amps per Conductor at 30ºC
  • Element: Data Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft (94.5 Ohm/km); Max. Conductor DCR: 28 Ohm/100m; Nom. Inner Shield DCR: 7.45 Ohm/1000ft (24.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Delay: 1.36 ns/ft; Nom. Inductance: 0.251 µH/ft (0.823 µH/m); Nom. Velocity of Prop.: 75%; Max. Current: 4 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 5 Ohm/1000ft (16 Ohm/km)
  • UL Voltage Rating: 300 V (CMG, CL2), 600 V (AWM 20201); Voltage Rating: 300 V (AWM I/II A)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +60°C
  • Stationary Min.: 2.8 in (71 mm); Installation Min.: 2.8 in (71 mm)
  • Max. Pull Tension: 70.06 lbs (31.78 kg)
  • Bulk Cable Weight: 44 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202 FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 725, Article 800, CL2, CMG
  • AWM Compliance: AWM 20201, AWM I/II A
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ODVA Class 2 Thin

Product Notes

  • Notes: Flex Life: +/- 90 Degree Flex Test, 2" Diameter, 2 lbs. tension: 2000 Cycles minimum. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark.

History

  • Update and Revision: Revision Number: 0.611 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
