Belden 2131A 0035000 Fieldbus, 12 Pr #16 Str TC, XLPE Ins, IS/OS, TPE Jkt, 600V TC-ER - Orange, 5,000 ft Reel

$294,816.99
SKU:
2131A 0035000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2131A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2131A 0035000 Fieldbus, 12 Pr #16 Str TC, XLPE Ins, IS/OS, TPE Jkt, 600V TC-ER

Fieldbus, 12 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 2131A 0035000
  • Color: Orange
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825130239

Supplied as one 5,000 ft Reel.

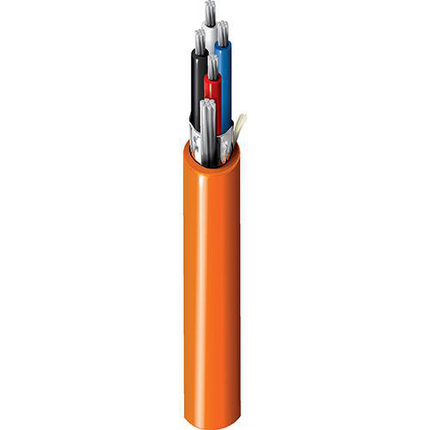

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 12; Size: 16 AWG; Stranding: 7x24; Material: TC - Tinned Copper
  • Element: Pair(s); Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Color Code: Blue, Orange and Numbered
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC; Notes: Individually Shielded
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (7x24) TC
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.085 in (2.2 mm); Nom. Diameter: 1.186 in (30.12 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 1.186 in (30.12 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 7.2 Amps per Conductor
  • Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.065
  • UL Voltage Rating: 600 V (TC-ER), 600 V (CSA CIC Type TC)

Mechanical Characteristics

  • UL Temperature: 90°C Wet/Dry; Operating: -40°C to 90°C
  • Temperature Table Notes: -40C
  • Max. Pull Tension: 1161 lbs (526.6 kg)
  • Bulk Cable Weight: 666 lbs/1000ft (991 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL1581 Vertical Tray, IEC 60332-3-24
  • NEC / UL Compliance: Article 336, TC-ER
  • AWM Compliance: AWM I A/B II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.317 Revision Date: 09-07-2025

Resources

Belden 2131A Product Information
