Belden 2129A 0035000 Fieldbus, 5 Pr #16 Str TC, XLPE Ins, IS/OS, TPE Jkt, 600V TC-ER

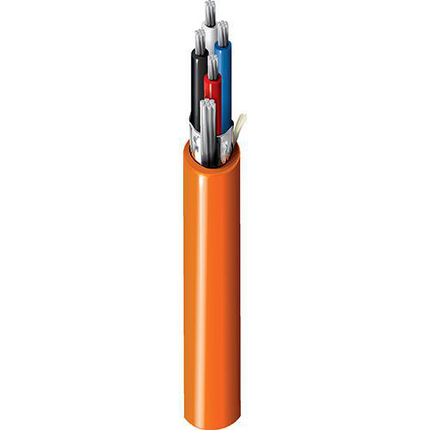

Fieldbus, 5 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC-ER
Ordering Details
- Manufacturer Part Number: 2129A 0035000
- Color: Orange
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825130093
Supplied as one 5,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.
Construction Details
- Element: Pair(s); No. of Elements: 5; Size: 16 AWG; Stranding: 7x24; Material: TC - Tinned Copper
- Element: Pair(s); Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Color Code: Blue, Orange and Numbered
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC; Notes: Individually Shielded
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (7x24) TC
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.789 in (20.0 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.789 in (20.0 mm)
Electrical Characteristics
- Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 10.1 Amps per Conductor
- Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.065
- UL Voltage Rating: 600 V (TC-ER), 600 V (CSA CIC Type TC)
Mechanical Characteristics
- UL Temperature: 90°C Wet/Dry; Operating: -40°C to 90°C
- Temperature Table Notes: -40C
- Max. Pull Tension: 504 lbs (229 kg)
- Bulk Cable Weight: 294 lbs/1000ft (438 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
- Flammability / Reaction to Fire: UL1581 Vertical Tray, IEC 60332-3-24
- NEC / UL Compliance: Article 336, TC-ER
- AWM Compliance: AWM I A/B II A/B
- CEC / C(UL) Compliance: CIC, TC
- ISO/IEC Compliance: IEC 61158-2
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ISA/SP-50 Type A
History
- Update and Revision: Revision Number: 0.445 Revision Date: 09-07-2025
