Description
Belden 19402 010250 Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT
Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SVT
Ordering Details
- Manufacturer Part Number: 19402 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825127048
- Manufacturer Footnote: F
Supplied as one 250 ft Reel.

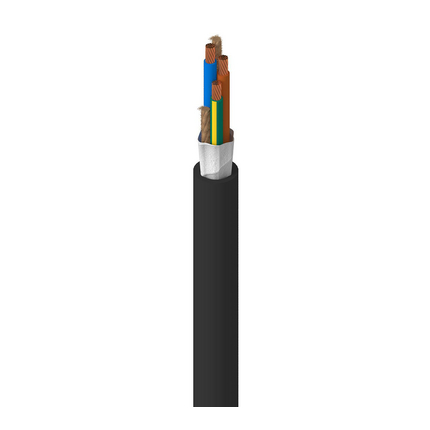

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Portable cordage for supplying power to appliances and tools
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 42x34; Material: BC - Bare Copper; Notes: 0.824mm2
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.084 in (2.1 mm); Color Code: Light Blue, Brown, Green/Yellow
- Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.034 in (0.86 mm); Nom. Diameter: 0.253 in (6.43 mm)
- Overall Cable Diameter (Nominal): 0.253 in (6.43 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.66 Ohm/1000ft; Max. Current: 7 Amps per conductor @ 30°C
- UL Voltage Rating: (Type SVT)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 61.5 lbs (27.9 kg)
- Bulk Cable Weight: 39 lbs/1000ft
Standards and Compliance
- NEC / UL Compliance: SVT
- AWM Compliance: SVT
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.525 Revision Date: 09-07-2025
- Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
