Belden 19362 010250 Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SJT - Black, 250 ft Reel

$1,833.99
SKU:
19362 010250
Shipping:
Calculated at Checkout
Color:
Black
Length:
250 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
19362
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 19362 010250 Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SJT

Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT

Ordering Details

  • Manufacturer Part Number: 19362 010250
  • Color: Black
  • Length: 250 ft
  • Put-Up: Reel
  • UPC/EAN: 612825126980
  • Manufacturer Footnote: C

Supplied as one 250 ft Reel.

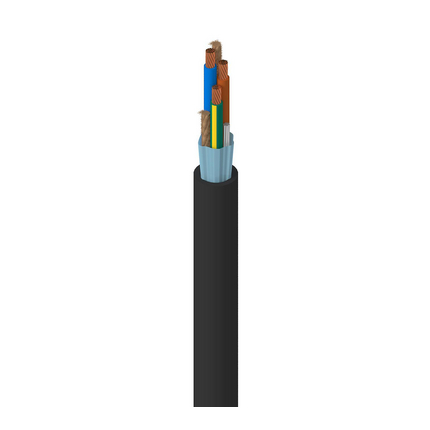

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Portable cordage and cordage

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 18; Stranding: 42x34; Material: BC - Bare Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.110 in (2.79 mm); Color Code: Brown, Blue, Green/Yellow
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.05 in (1.3 mm); Nom. Diameter: 0.34 in (8.6 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 6.97 Ohm/1000ft; Max. Current: 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
  • Max. Current: 7 Amps per Conductor at 25ºC (over 50 ft)
  • Nom Outer Shield DCR: 7.2 Ohm/1000ft (24 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 60°C
  • Stationary Min.: 3.4 in (86 mm); Installation Min.: 3.4 in (86 mm)
  • Max. Pull Tension: 63.9 lbs (29.0 kg)
  • Bulk Cable Weight: 66 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Outdoor, Sunlight Resistance
  • NEC / UL Compliance: Article 400, SJT
  • AWM Compliance: SJT
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.509 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 19362 Product Information
