Belden 19209 010250 Portable Cordage, 3 C #18 Str BC, EPDM Ins, CPE Jkt, UL Type SO - Black, 250 ft Reel

$2,176.99
SKU:
19209 010250
Shipping:
Calculated at Checkout
Color:
Black
Length:
250 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
19209
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 19209 010250 Portable Cordage, 3 C #18 Str BC, EPDM Ins, CPE Jkt, UL Type SO

Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Ordering Details

  • Manufacturer Part Number: 19209 010250
  • Color: Black
  • Length: 250 ft
  • Put-Up: Reel
  • UPC/EAN: 612825126812
  • Manufacturer Footnote: C F

Supplied as one 250 ft Reel.

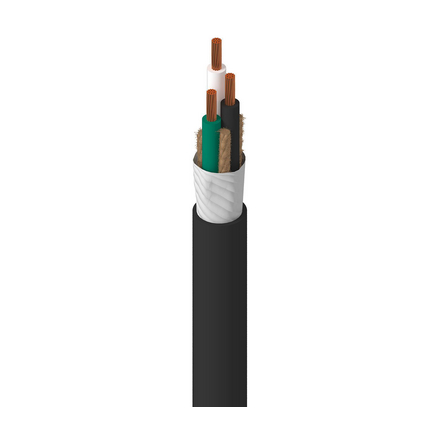

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 42x34; Material: BC - Bare Copper
  • Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.110 in (2.79 mm); Color Code: Black, White, Green
  • Material: No Shield
  • Separator: Cotton Serve; Material: CPE - Chlorinated Polyethylene (Thermoset); Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.38 in
  • Overall Cable Diameter (Nominal): 0.38 in

Electrical Characteristics

  • Nom. Conductor DCR: 6.97 Ohm/1000ft; Max. Current: 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C To +60°C
  • Stationary Min.: 3.8 in (97 mm); Installation Min.: 3.8 in
  • Max. Pull Tension: 61.5 lbs (27.9 kg)
  • Bulk Cable Weight: 77 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Oil Resistance
  • NEC / UL Compliance: Article 400, SO
  • AWM Compliance: SO
  • CEC / C(UL) Compliance: LL7874
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.381 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Resources

Belden 19209 Product Information
